Hello, I wrote this tutorial to represent the parameters to implement to successfully implement smart card authentication in RDS.

In this environment, RDS publishing servers is in a different Direcory Active Forest from users.

In this context, here are all the steps you need to take to properly set up active Directory and your RDS farm to allow this second authentication factor.

Attention I do not explain how to install the solution RDS, i detail all the prerequisites for smartcard authentication in a multi domain environment, multi forest works.

Environment description

ADDS

First forest AD DS : AD.LOCAL

  • One domain controller: DC01.ad.local
  • PKI
  • Domain name: AD.LOCAL
  • Content:
    • Users
    • Security groups
      Workstation

Second forest AD DS : FOREST.LOCAL

  • One domain controller: DC10.forest.local

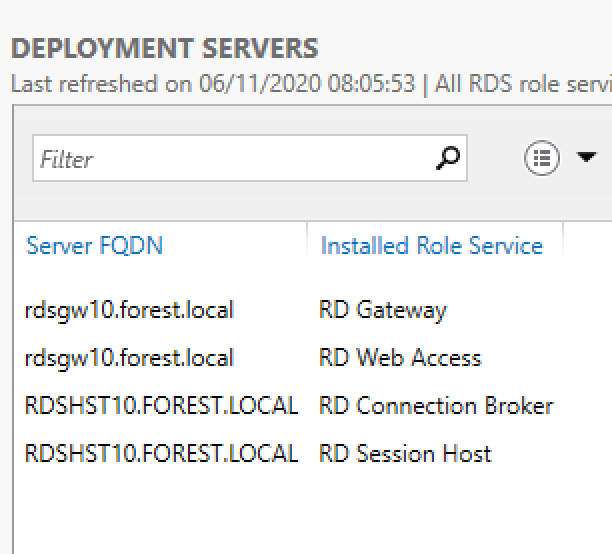

  • Infra RDS details:
    • Rdshst rôles Broker et Host
    • Rdsgw rôles gateway et Web access

Trust relationship AD DS

Two-way trust

Infra RDS

Windows server services

Set smartcard logon service to start automatically and start the service on all servers of the RDS infra.

Remote Desktop Services

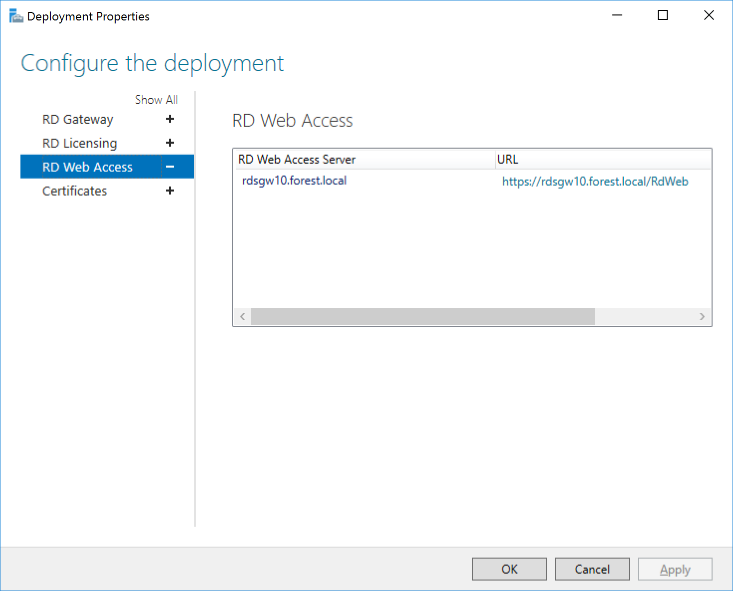

RD Web Access details

Web access URL: rds10.forest.local

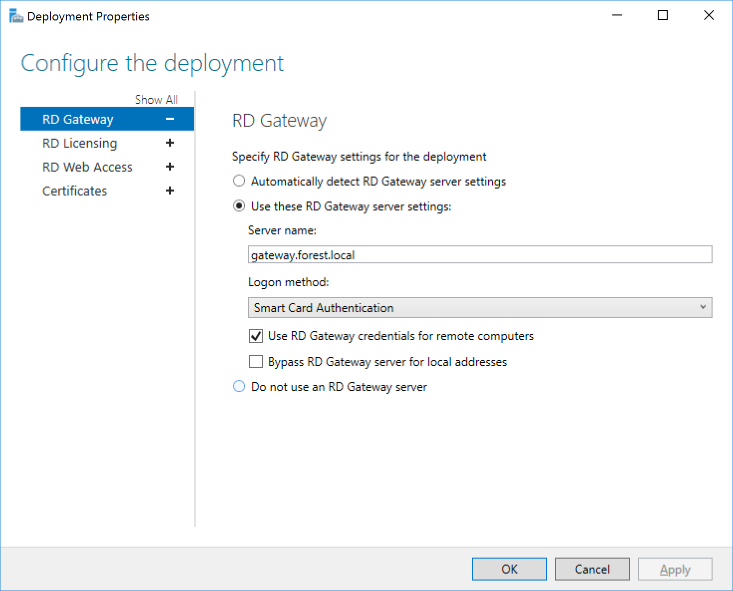

RD Gateway details

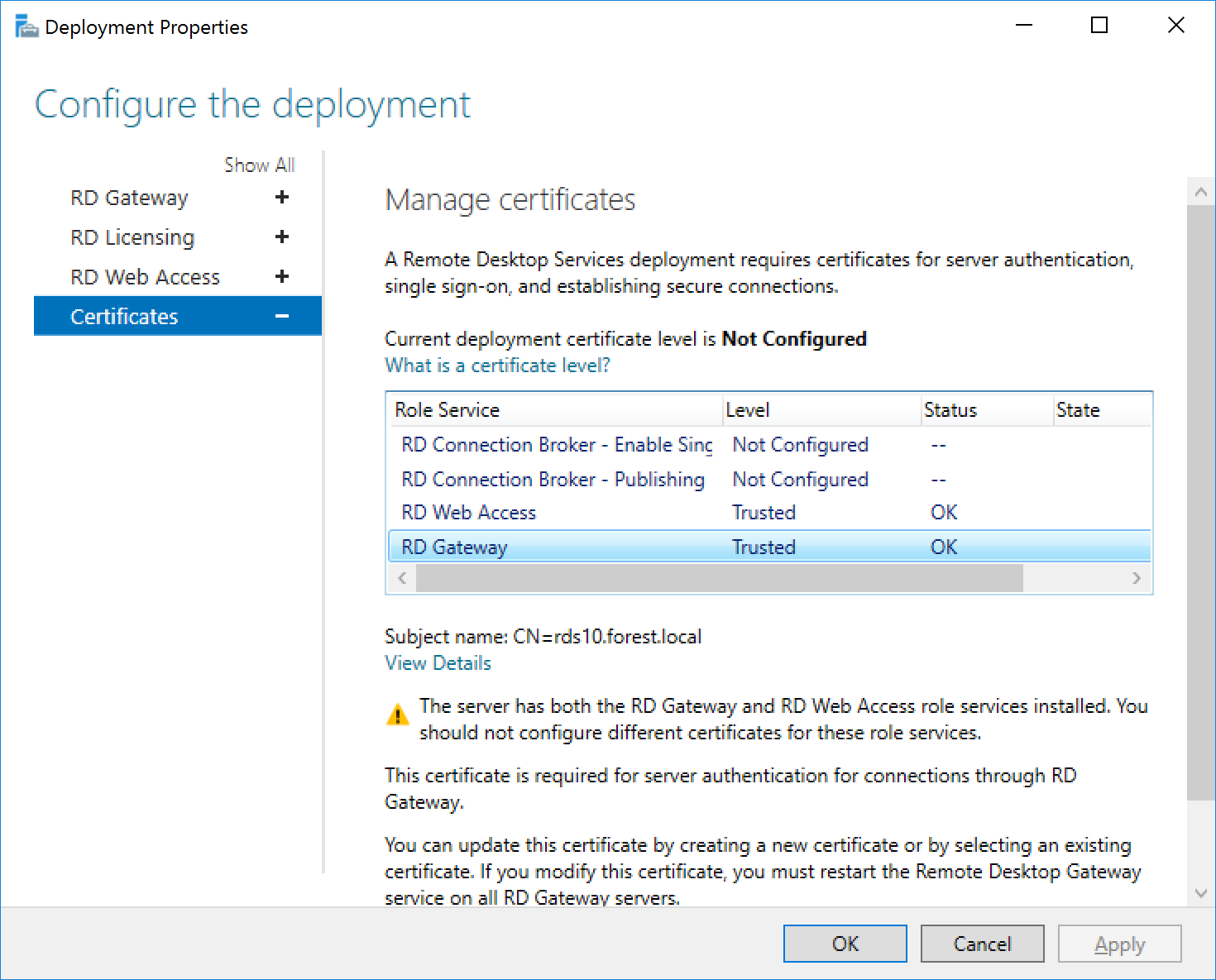

Certificates deployment details

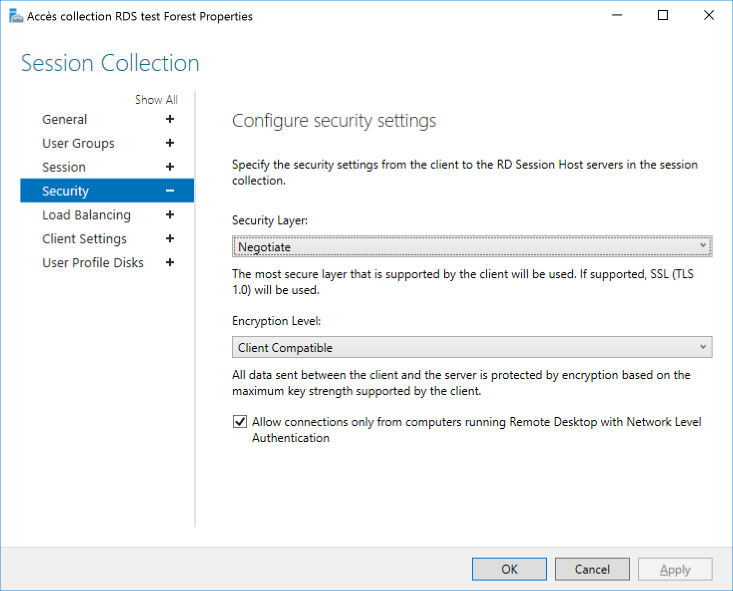

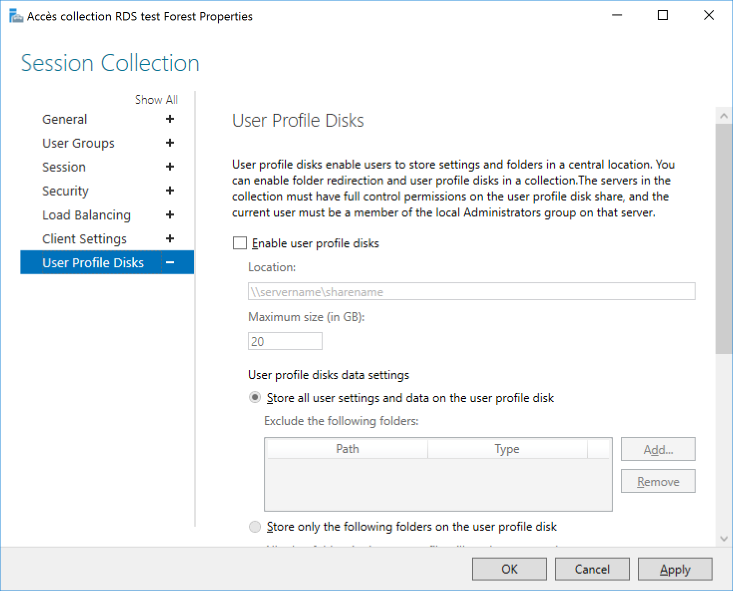

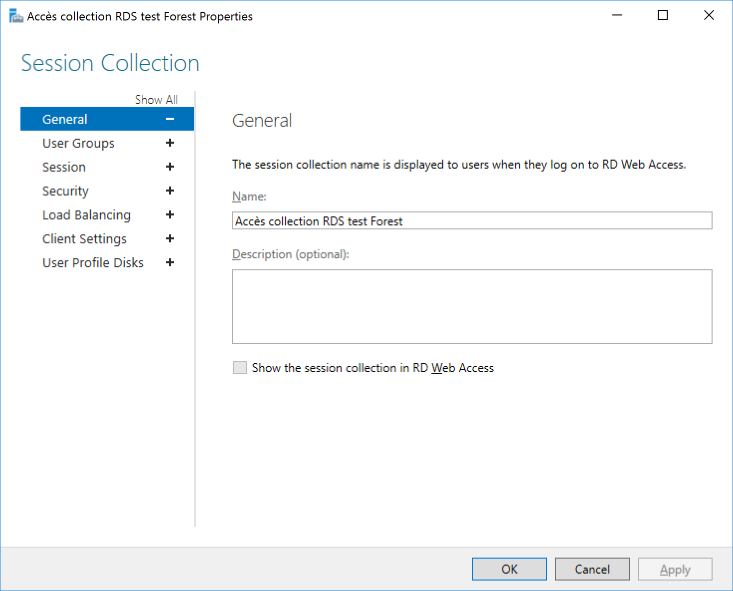

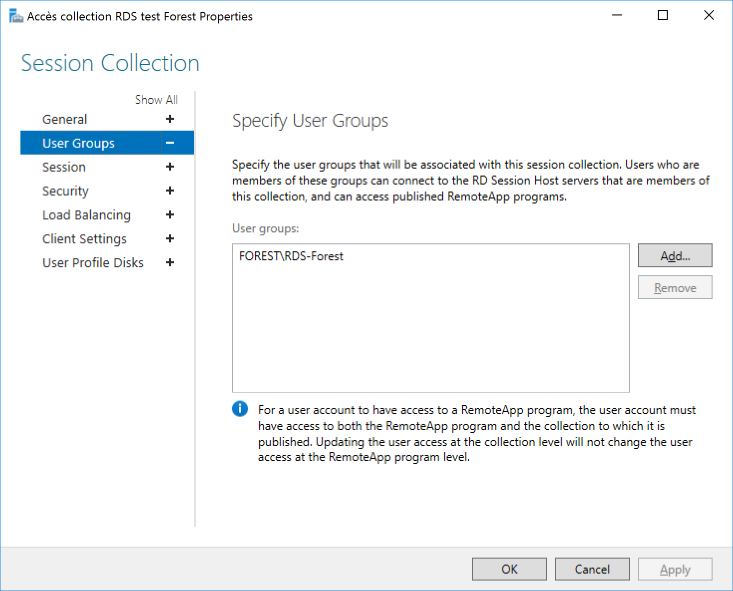

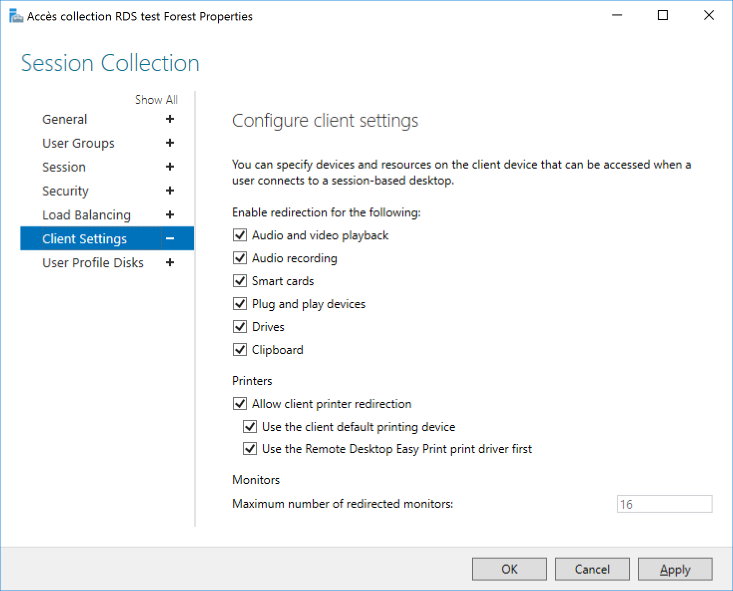

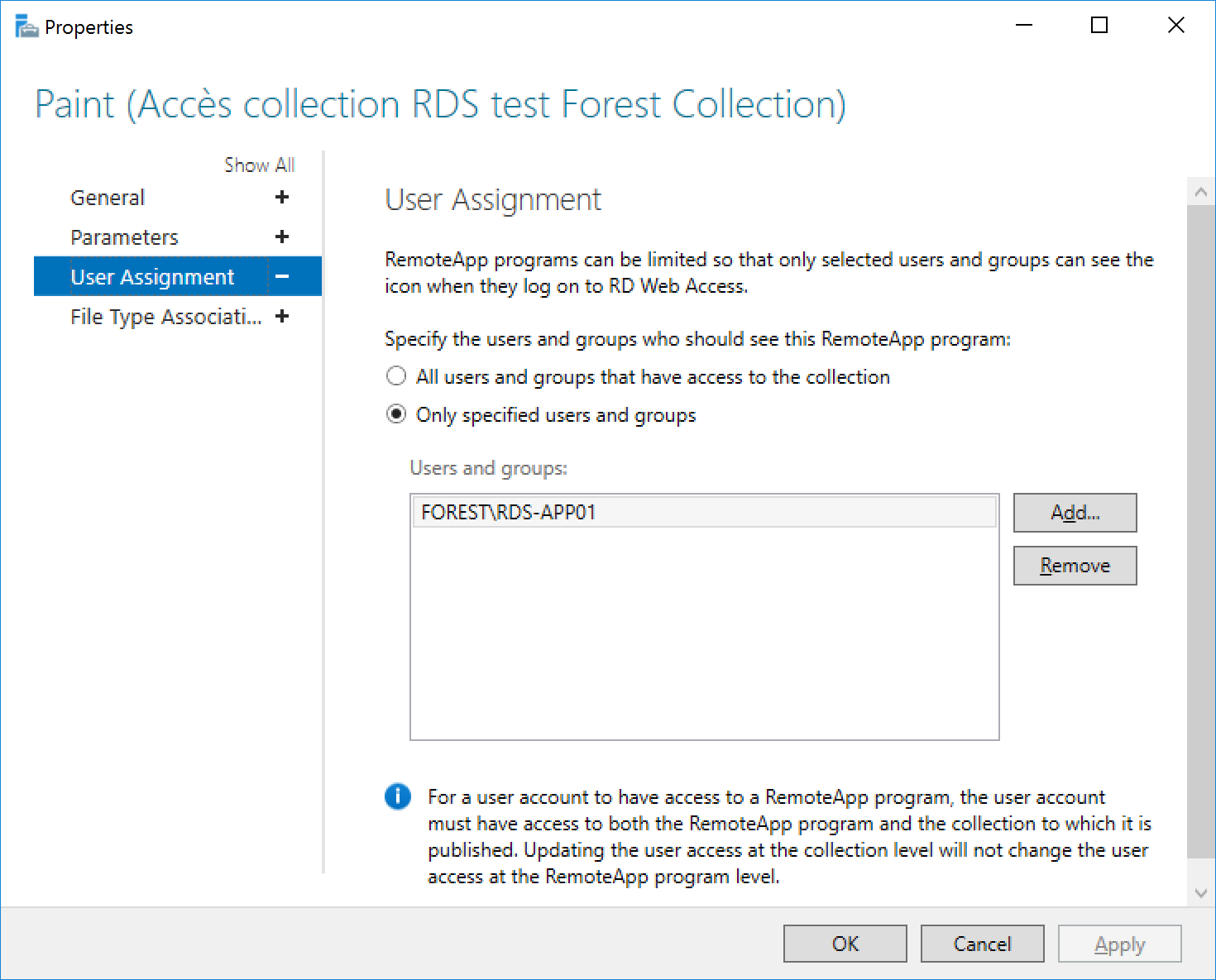

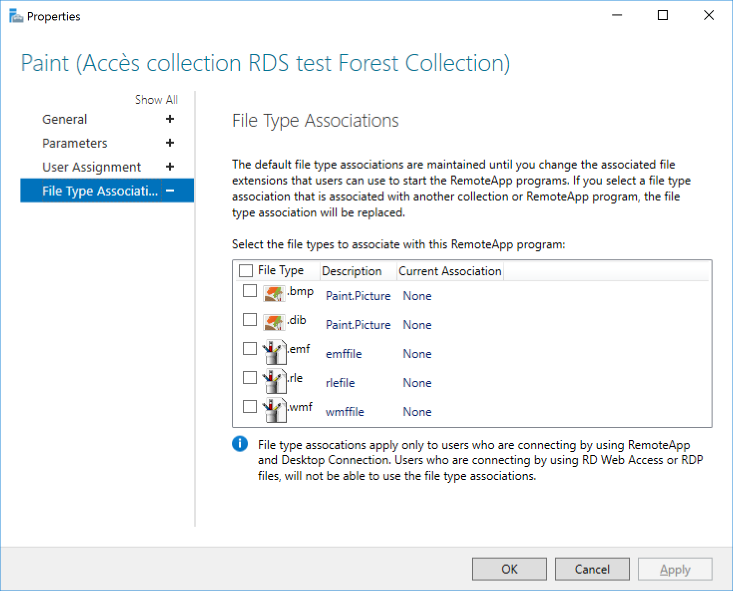

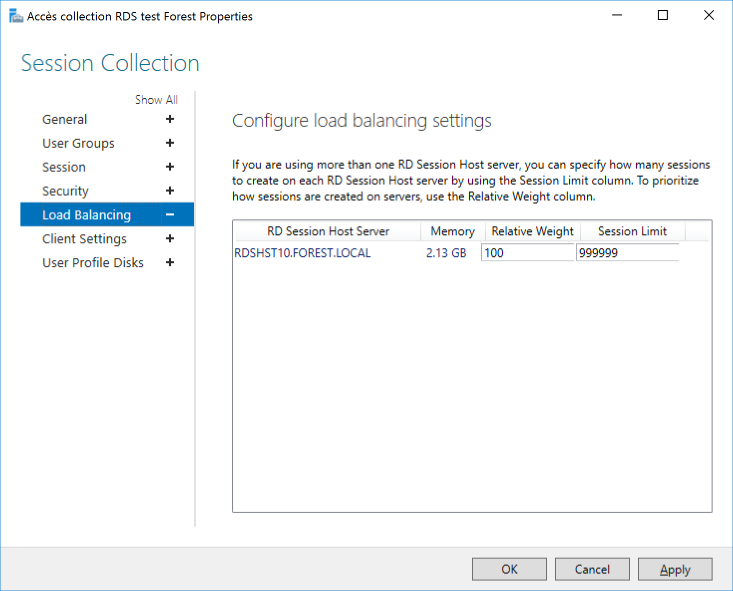

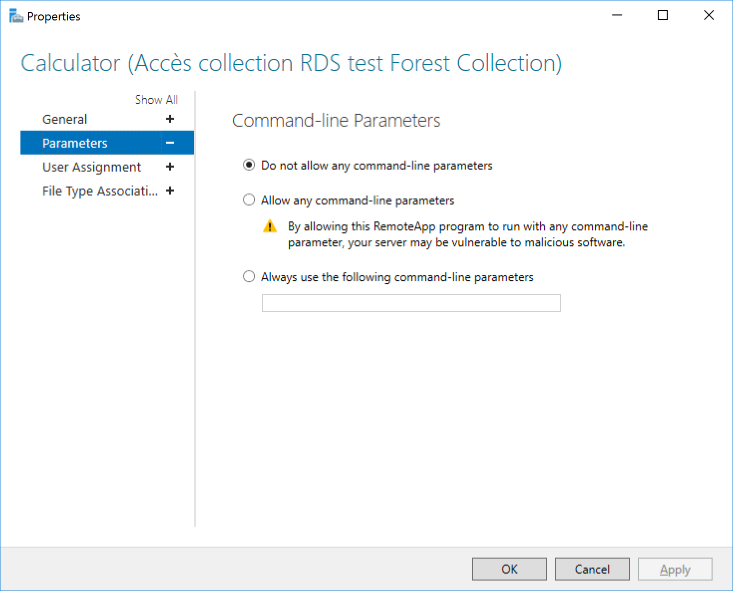

Properties of the collections

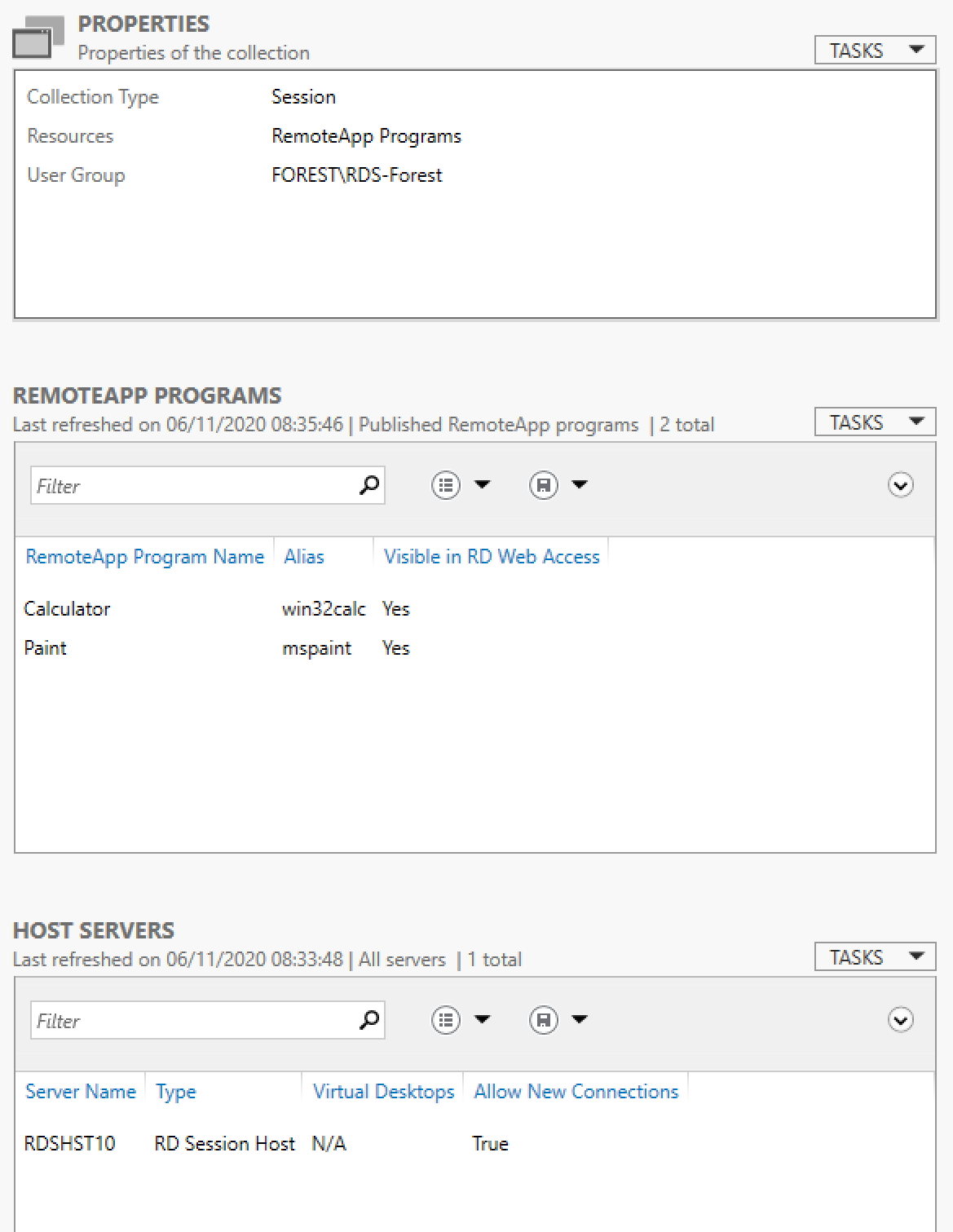

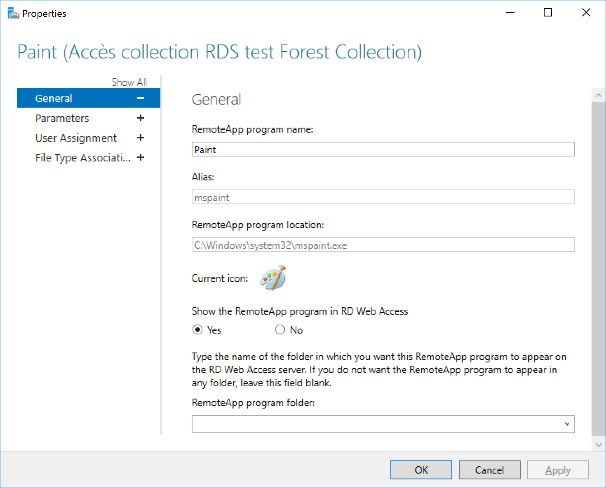

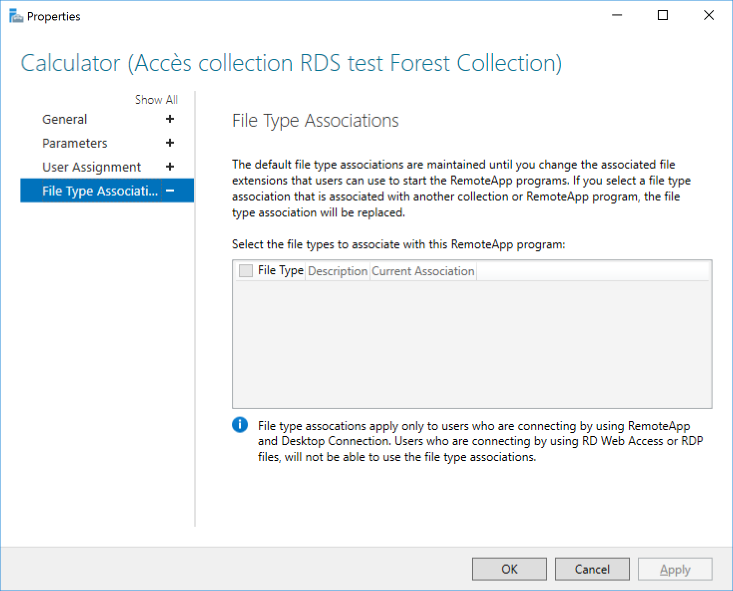

Remote APPS settings

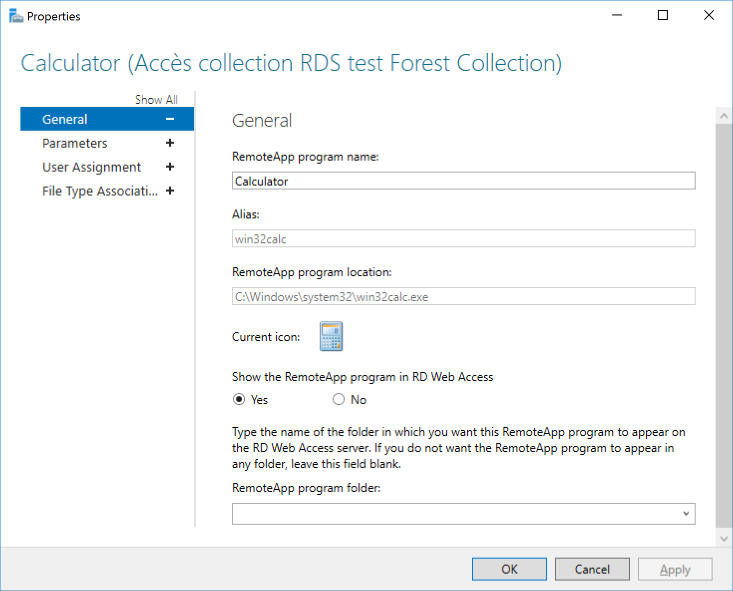

Calculate

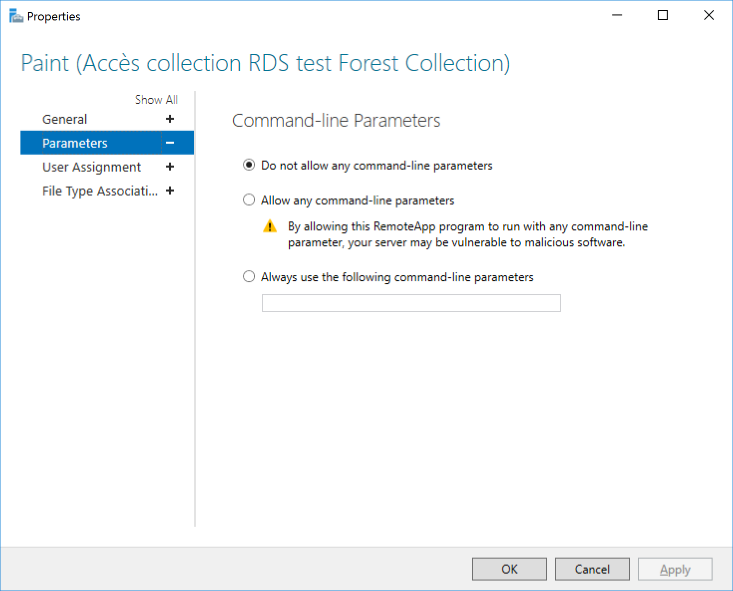

MsPaint


RD Gateway Manager settings

External URL : gateway.forest.local

Policies settings

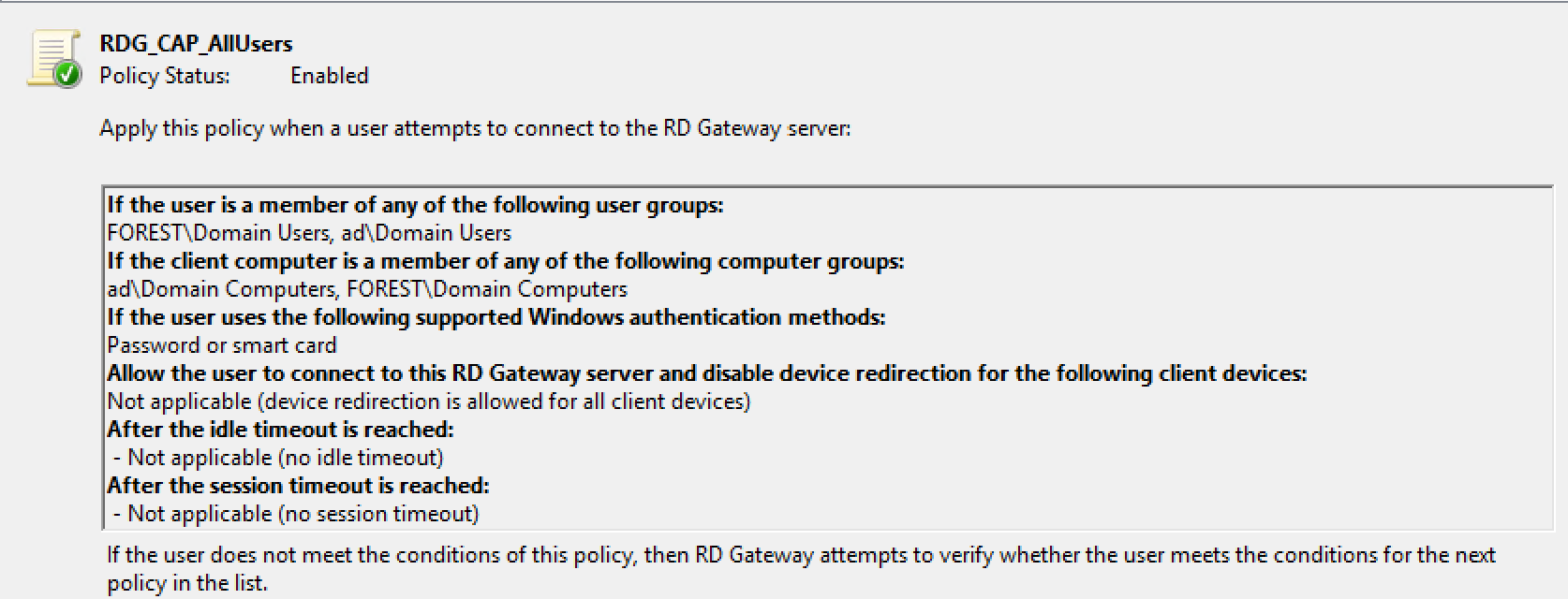

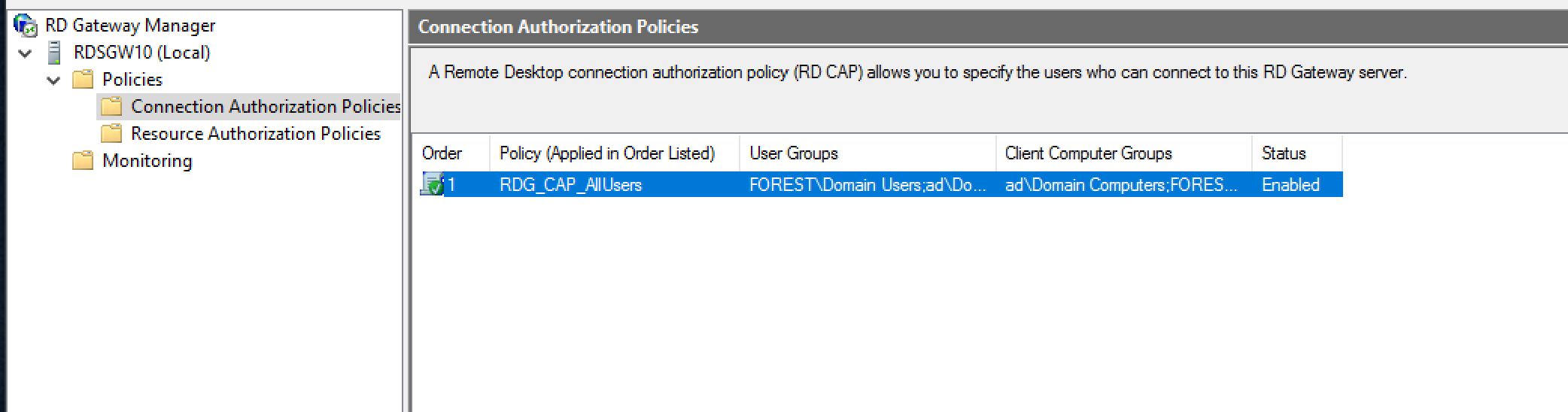

RDG_CAP_AllUsers

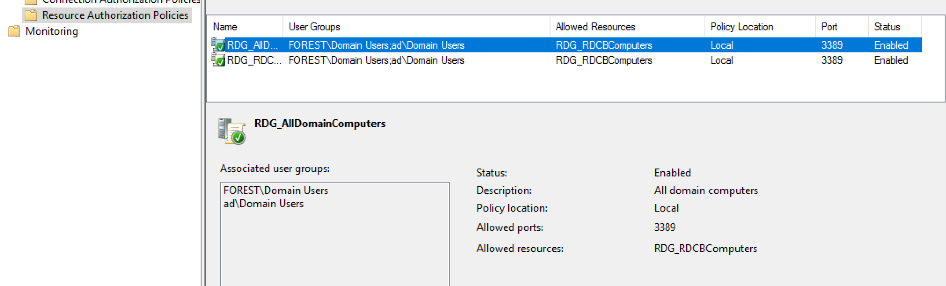

RDG_AllDomainComputers

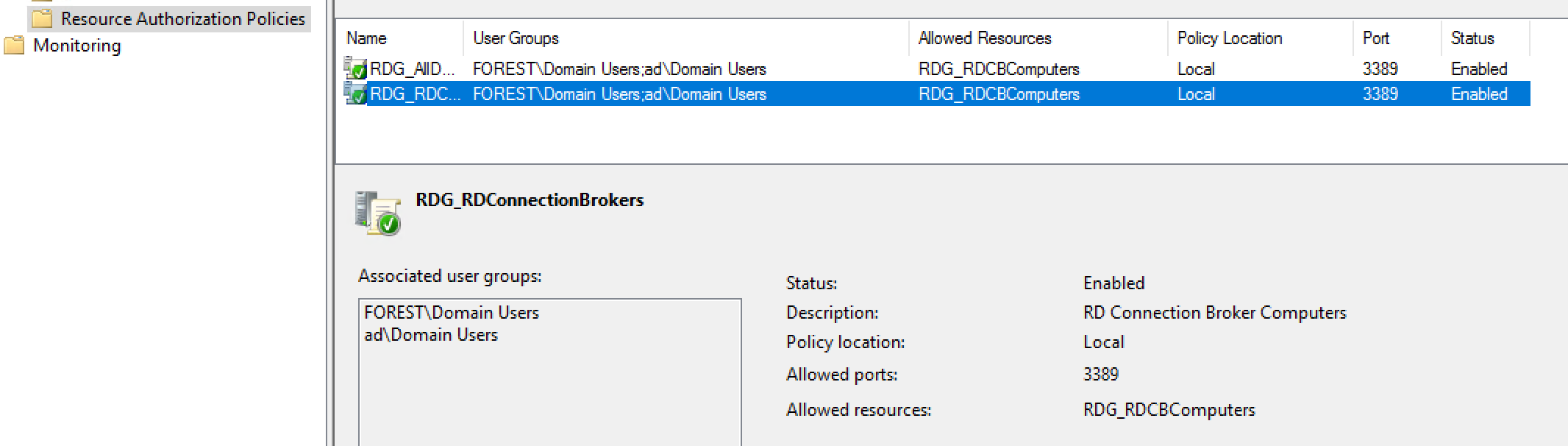

RDG_RDConnectionBrokers

Certificates models

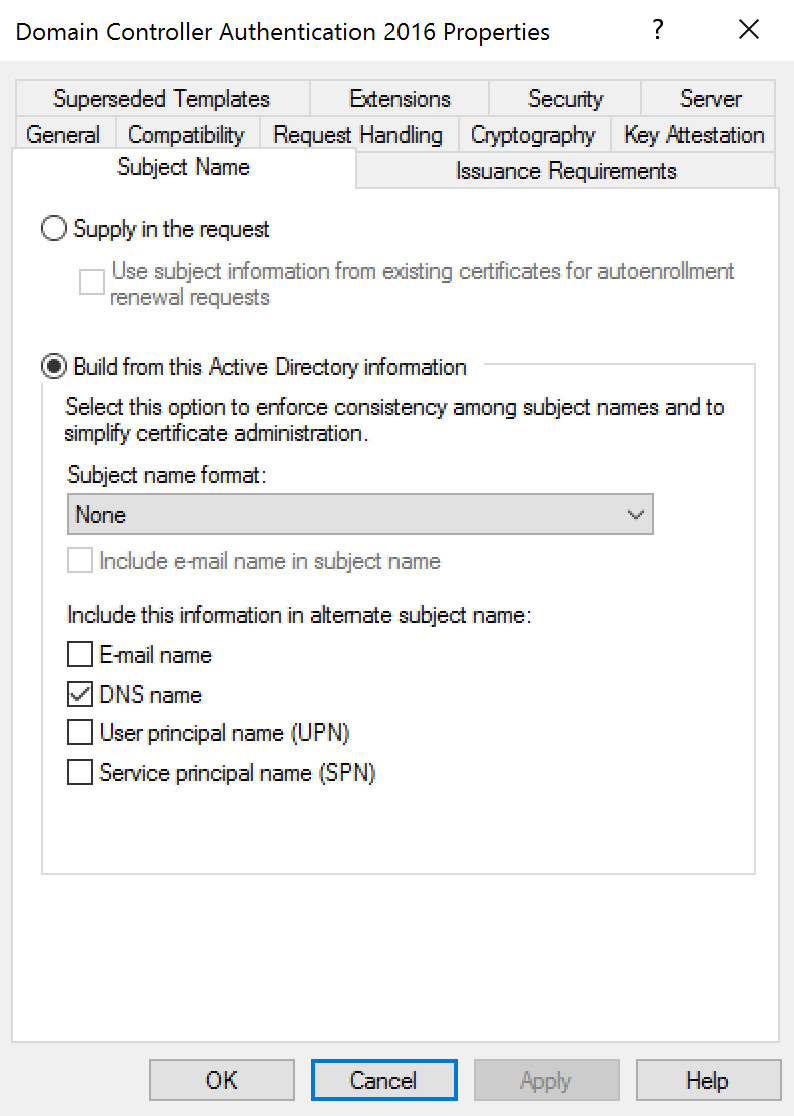

Model domain controller

Comments Captures

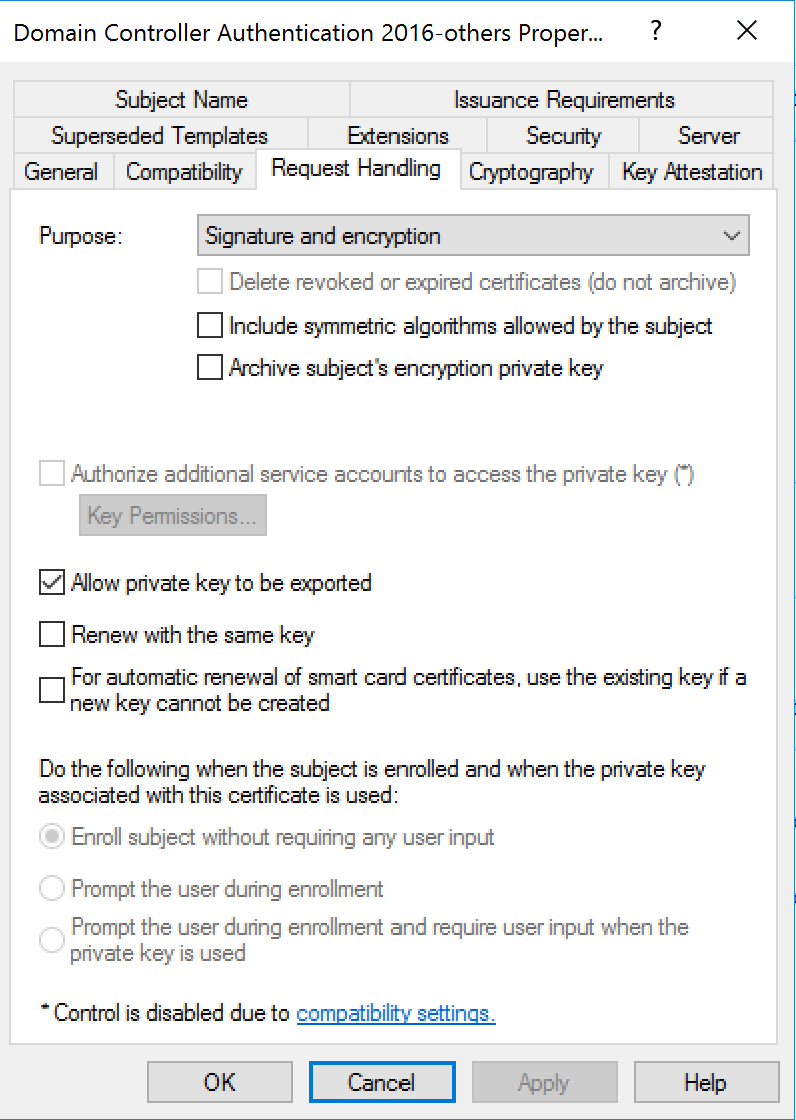

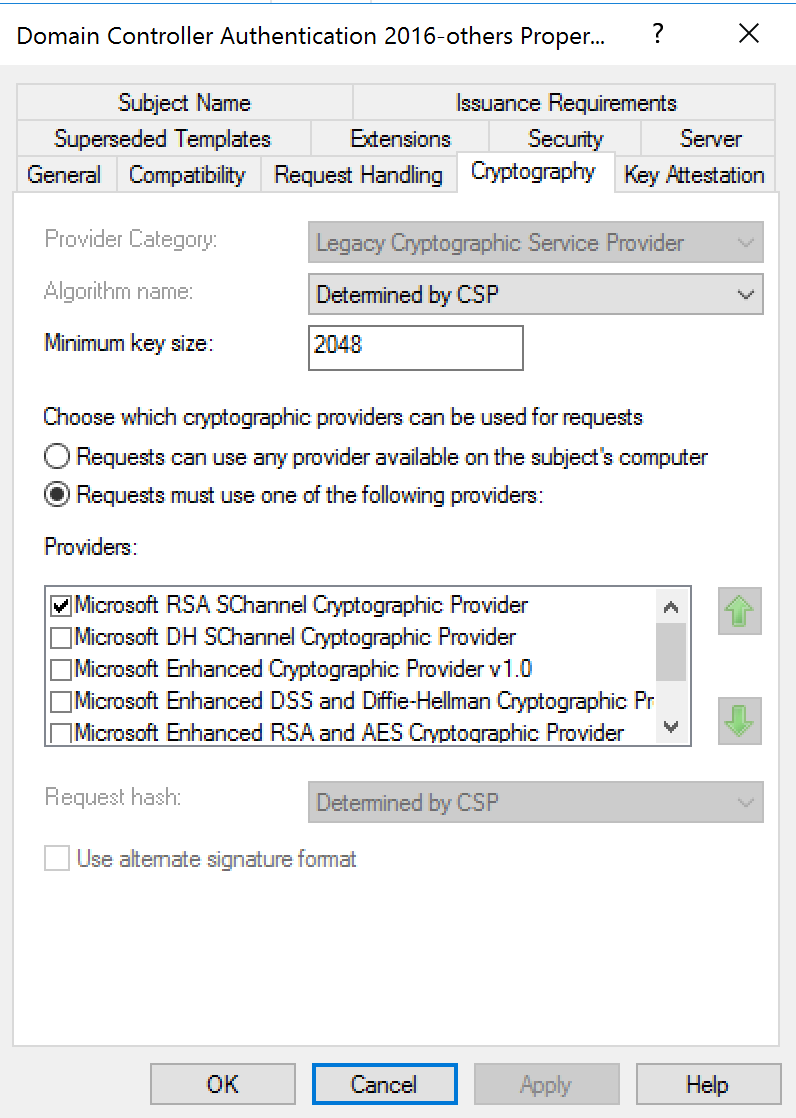

Allow private key to be export
Minimum key size 2048

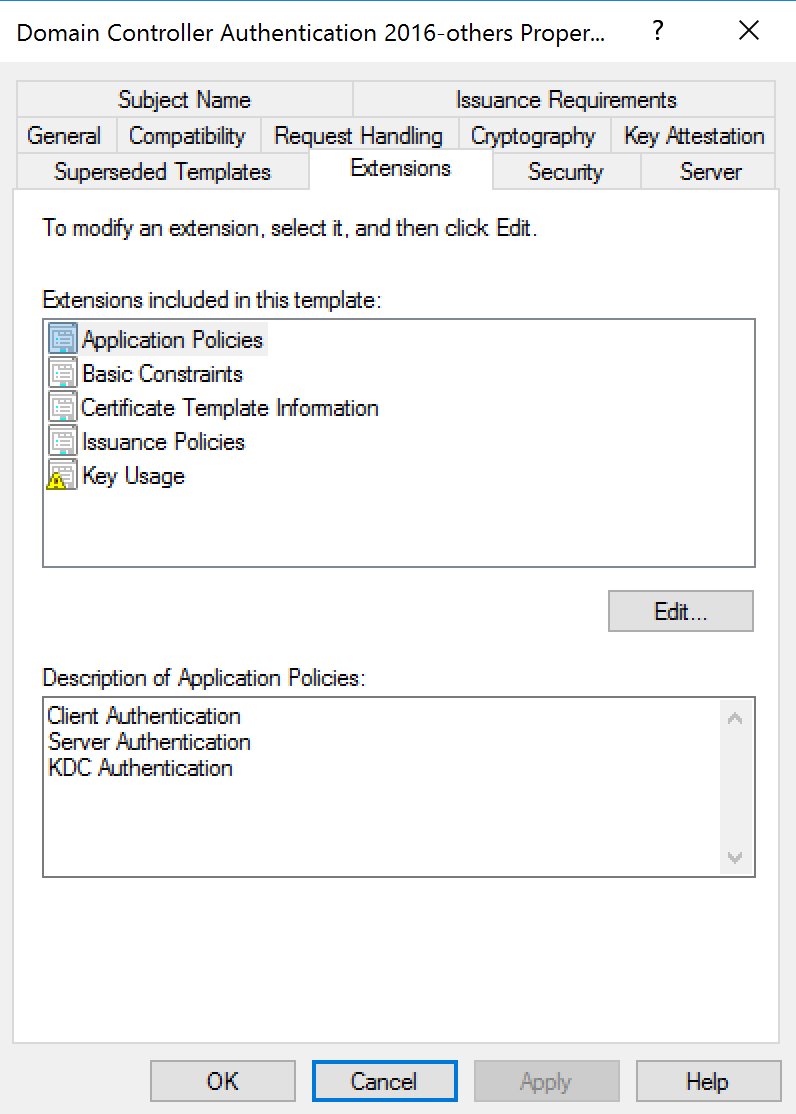

EKU :

  • Client authentication
  • Server authentication
  • KDC Authentication*

*KDC Authentication is needed for cross domain authentication for RDS infra
DNS Name for SAN

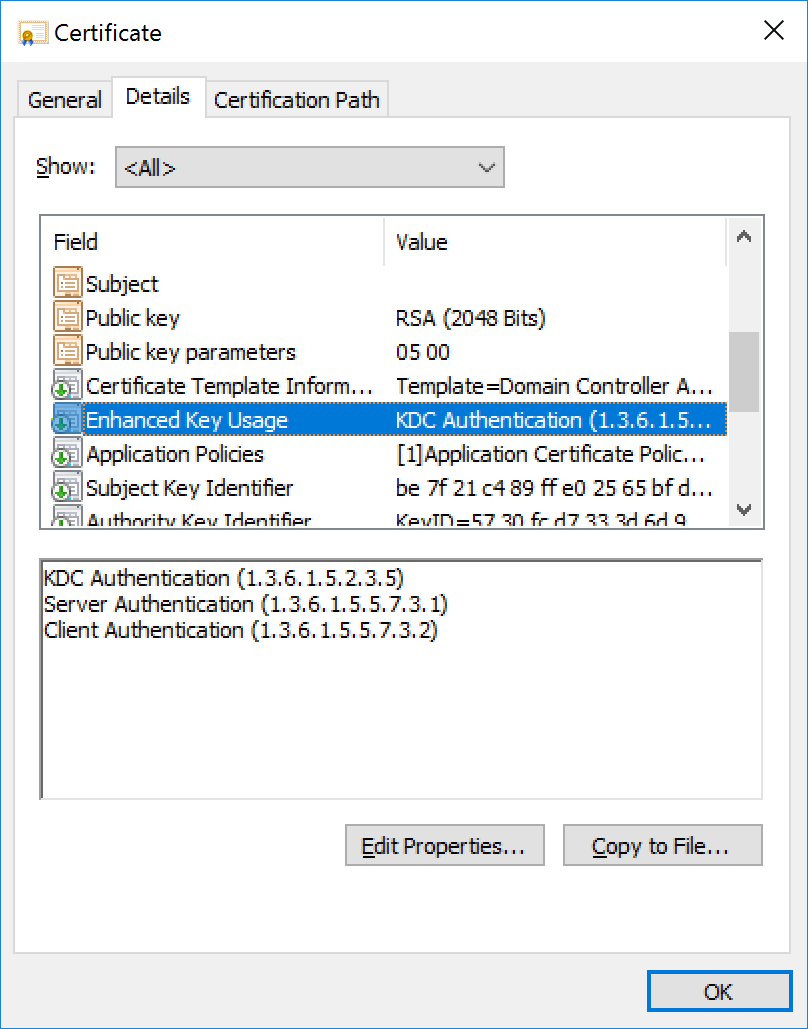

EKU details

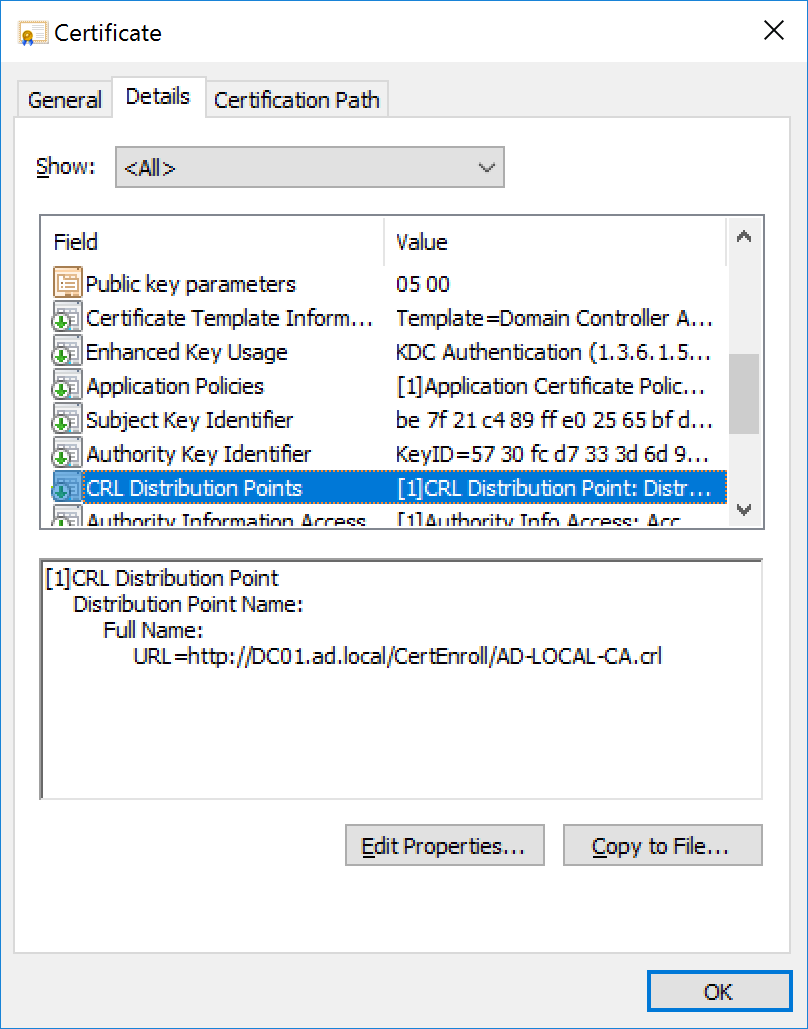

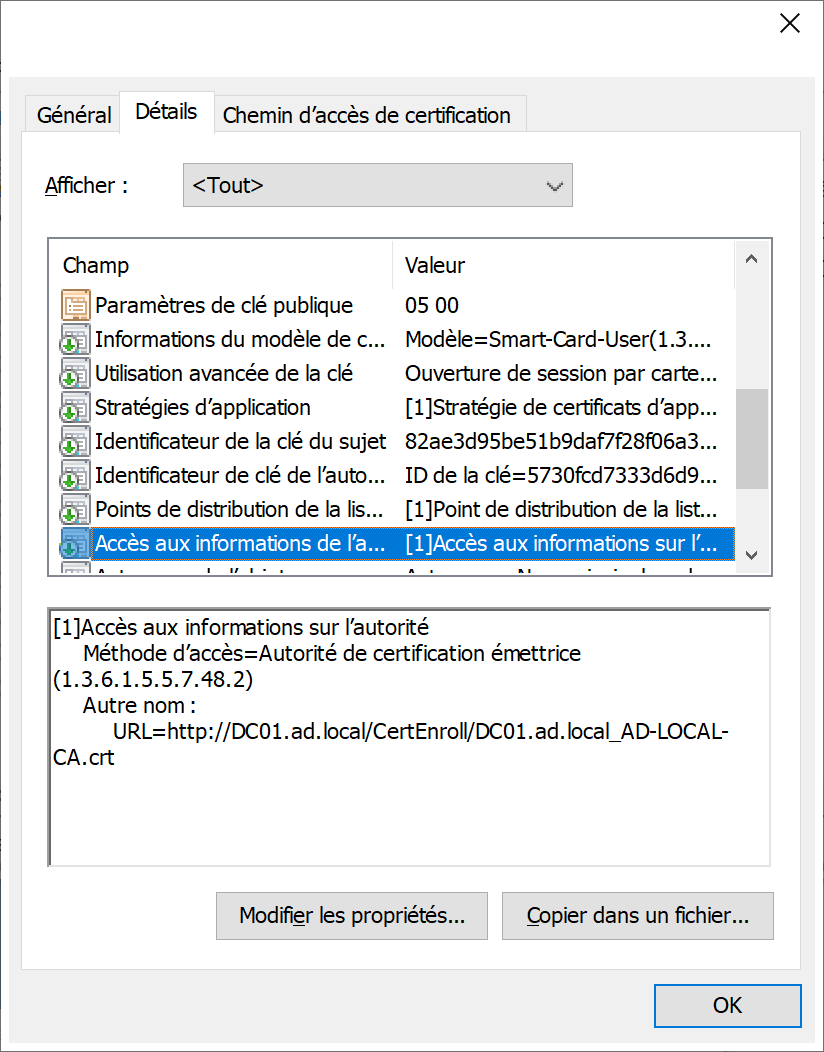

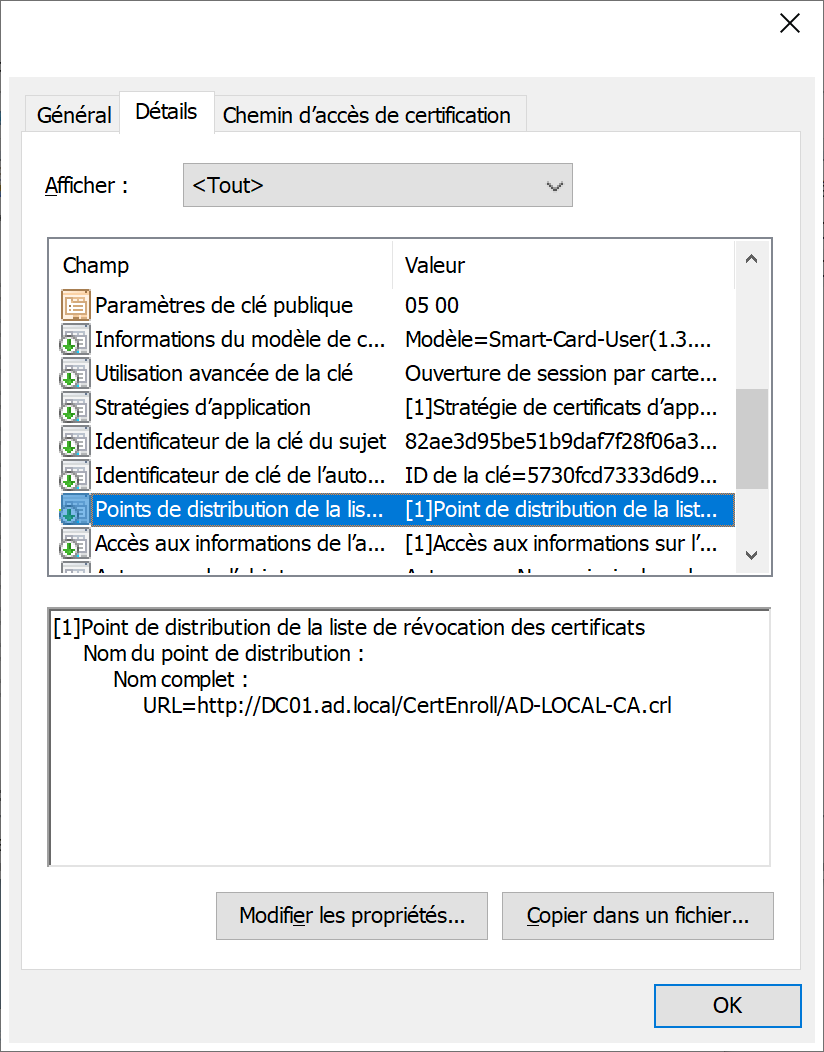

The access to CRL need to be on format http uri

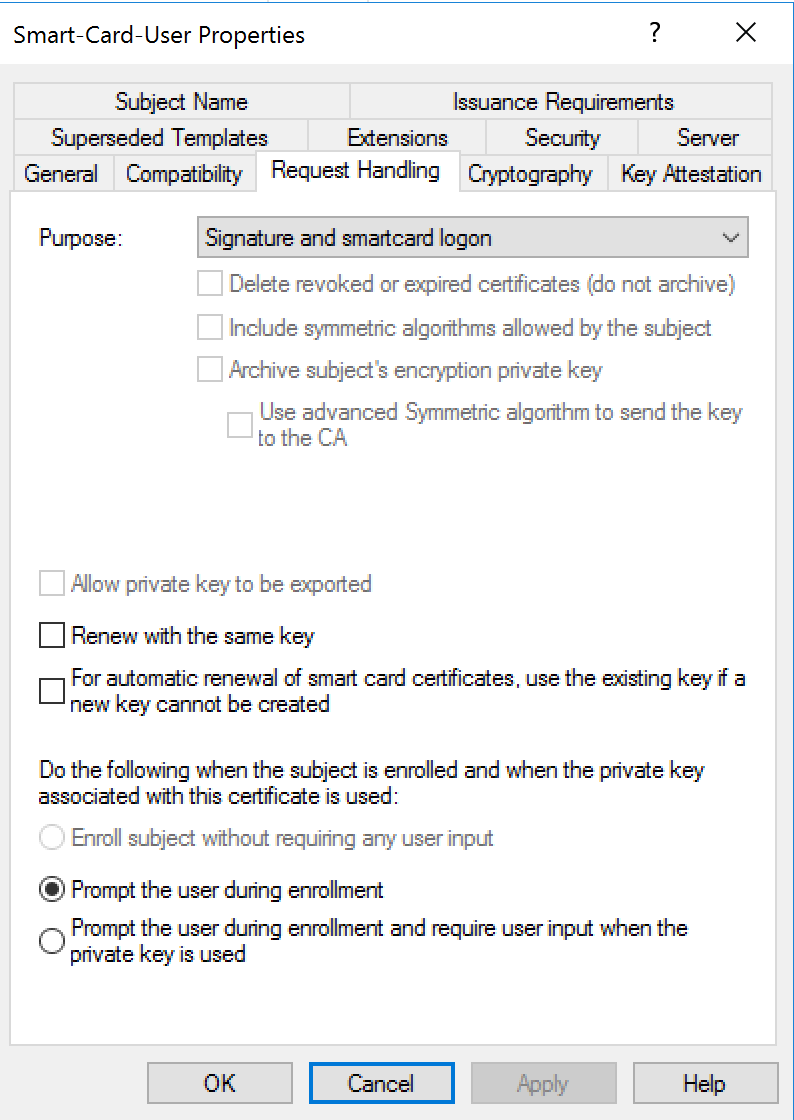

Model Smartcard

Comments Captures
Prompt user for certificate enrollment

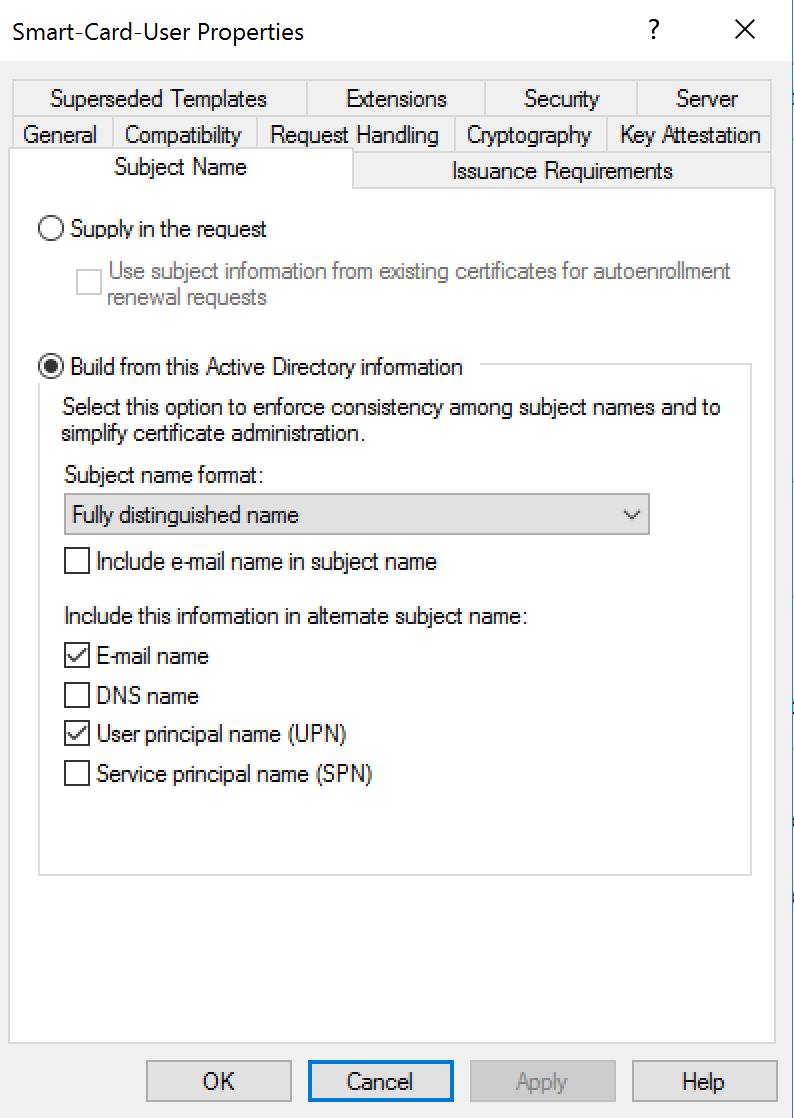

Add email and UPN information’s

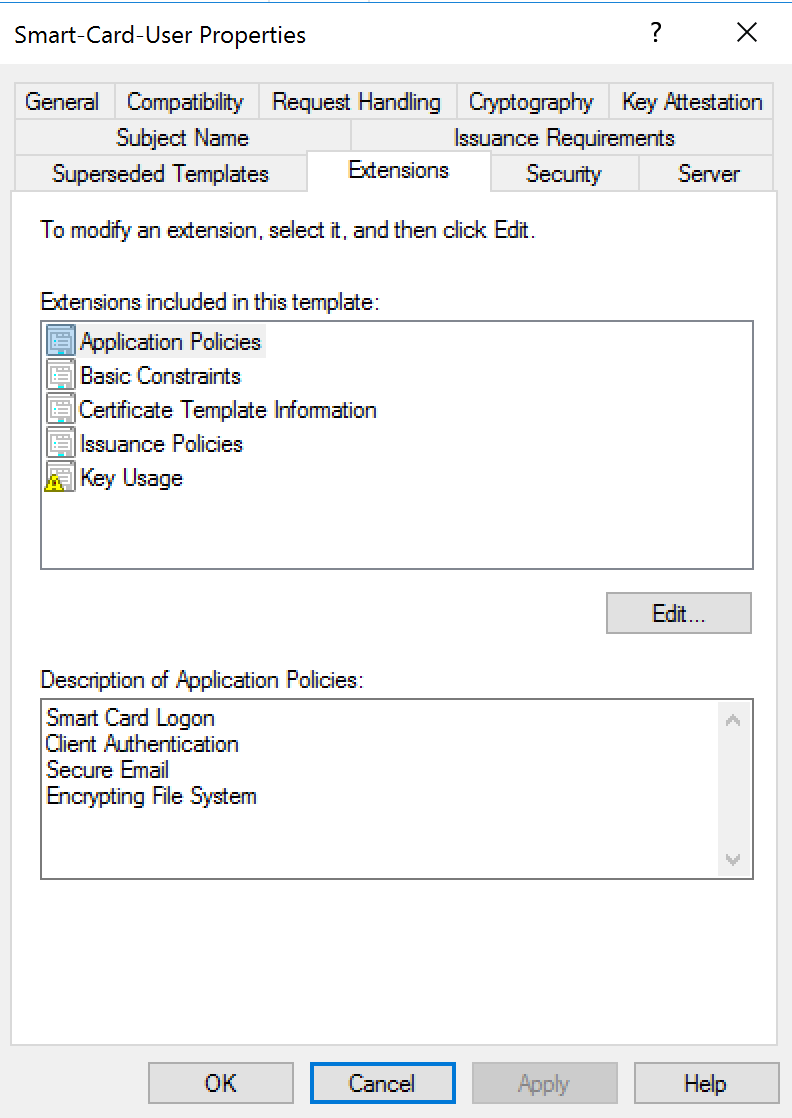

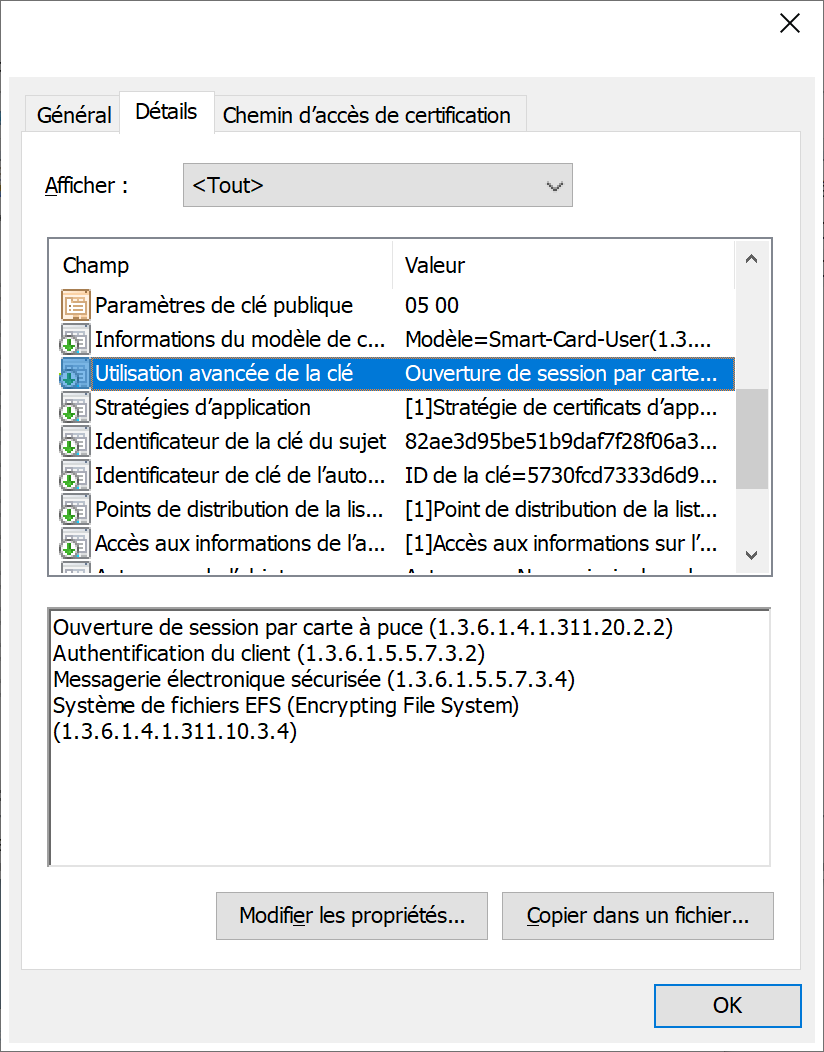

Application policies:

·       Smart Card Logon*

·       Client Authentication*

·       Secure Email

·       Encrypting File System



*Mandatory

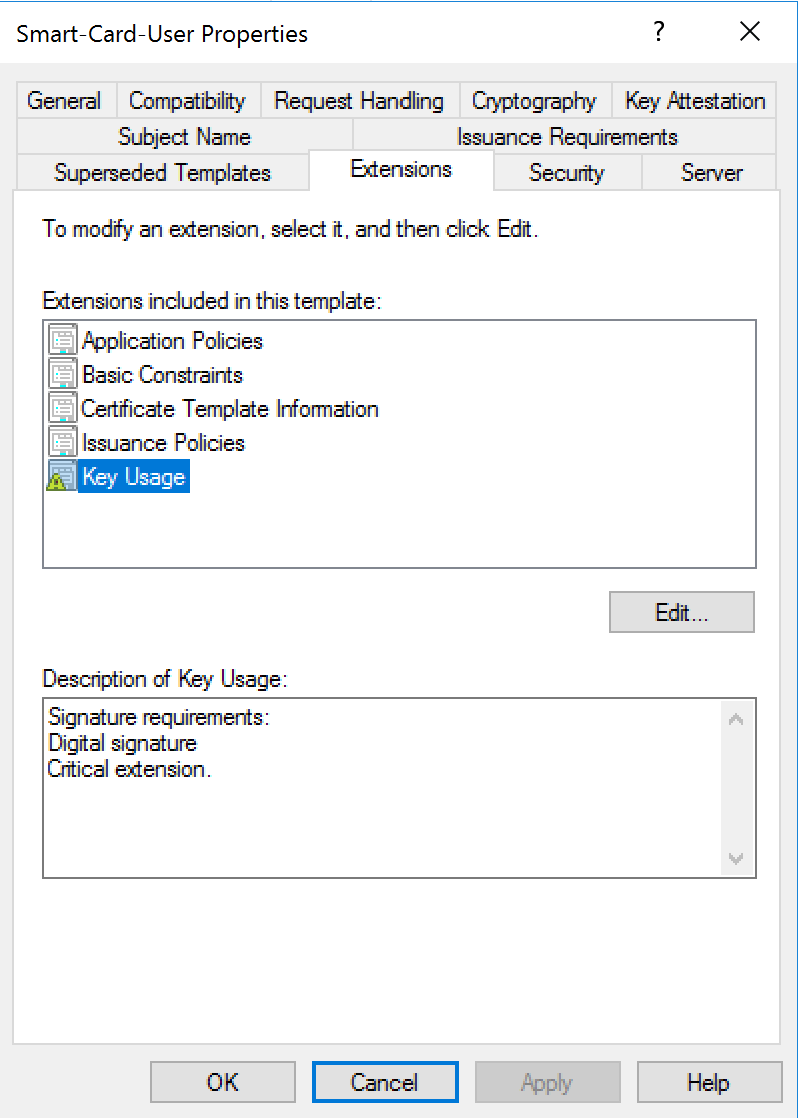

Key Usage:

  • Digital Signature

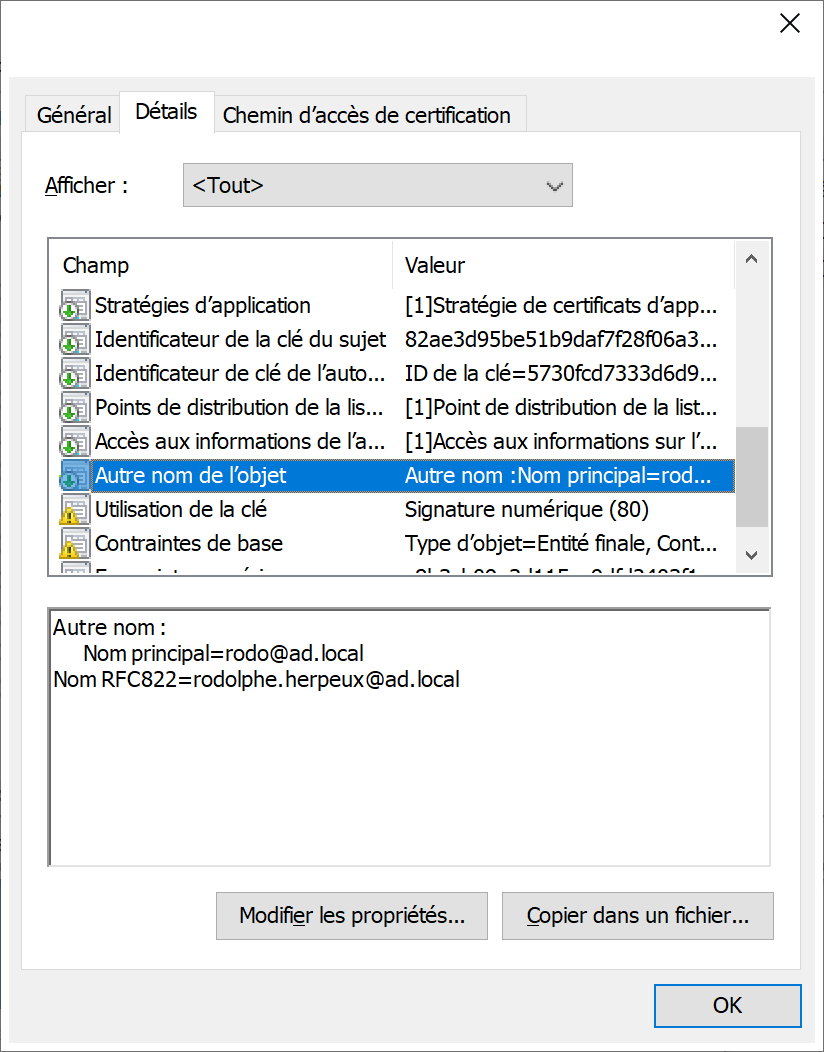

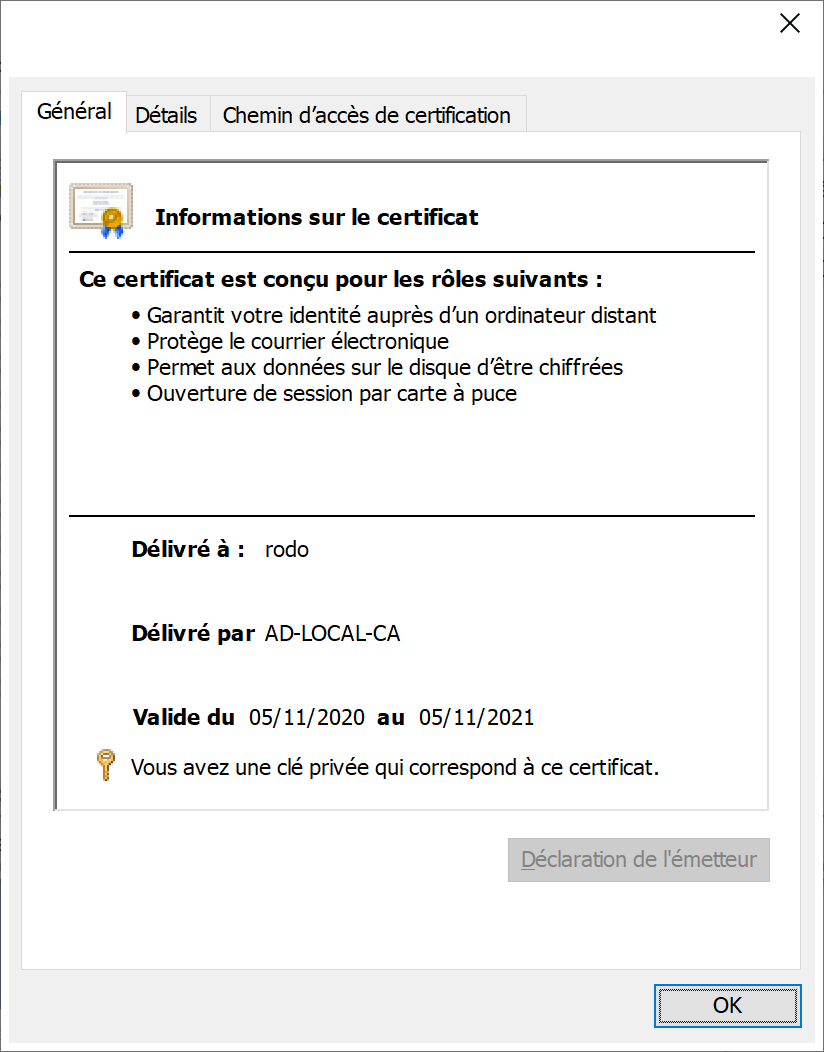

Certificate result

Requirements and references

Add the third party issuing the CA to the NTAuth store in Active Directory.
The smart card logon certificate must be issued from a CA that is in the NTAuth store. By default, Microsoft Enterprise CAs are added to the NTAuth store.
If the CA that issued the smart card logon certificate or the domain controller certificates is not properly posted in the NTAuth store, the smart card logon process does not work. The corresponding answer is “Unable to verify the credentials”.
https://docs.microsoft.com/en-ca/troubleshoot/windows-server/windows-security/enabling-smart-card-logon-third-party-certification-authorities
https://docs.microsoft.com/en-us/windows/security/identity-protection/smart-cards/smart-card-and-remote-desktop-services

Command lines executed in forest.local

  • certutil -dspublish -f c:\temp\CA.cer NTAuthCA
  • certutil -enterprise -addstore NTAuth c:\temp\CA.cer
  • certutil -addstore -enterprise NTAUTH “C:\Temp\dc01.ad.local.cer”, need to be verify without this certificate

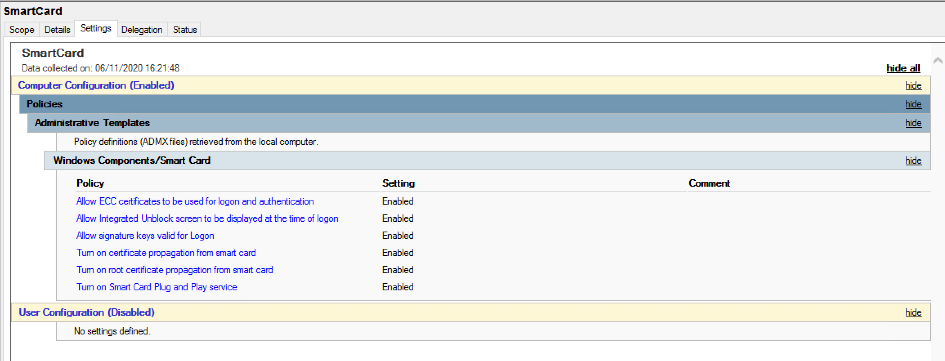

Group Policy Domain

Domain forest.local

Demonstration

Test with APP01 Account for Paint application

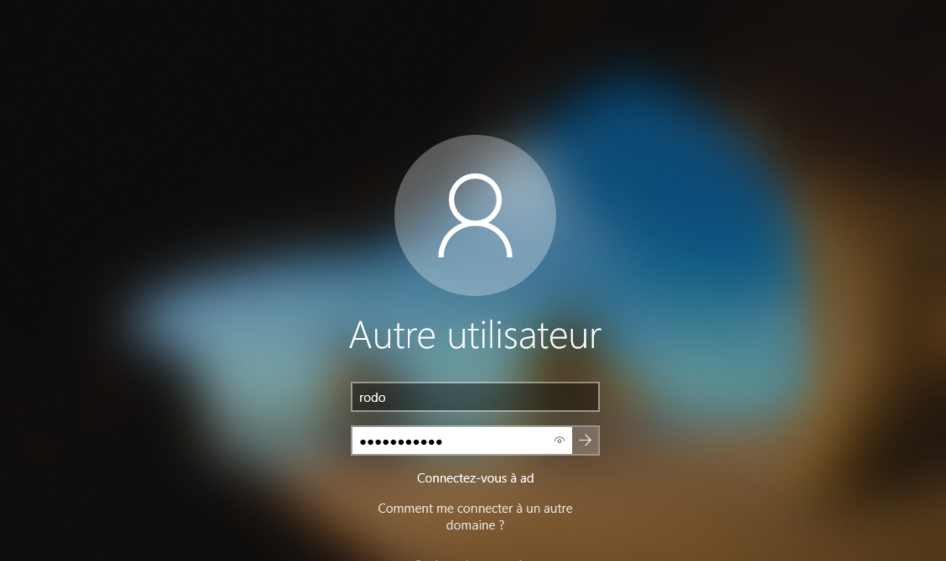

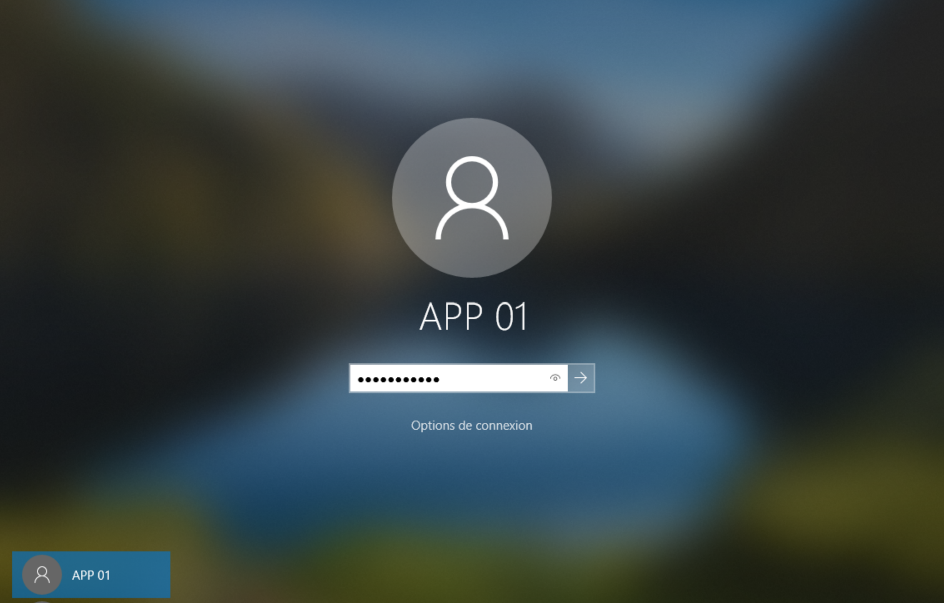

Open session on workstation Win10 with account user APP01

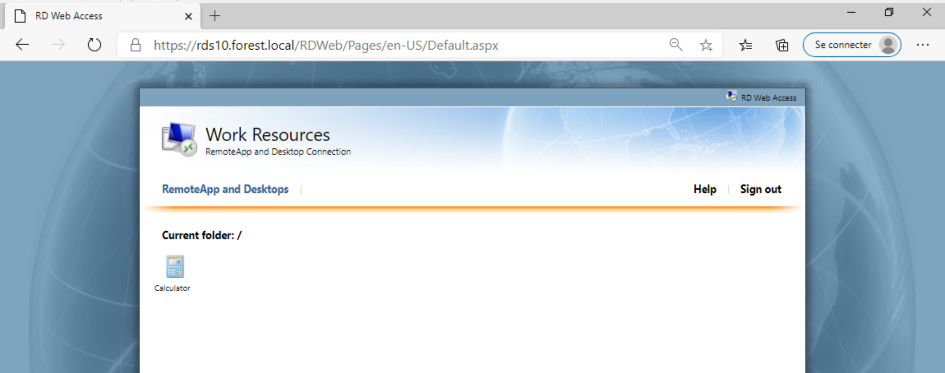

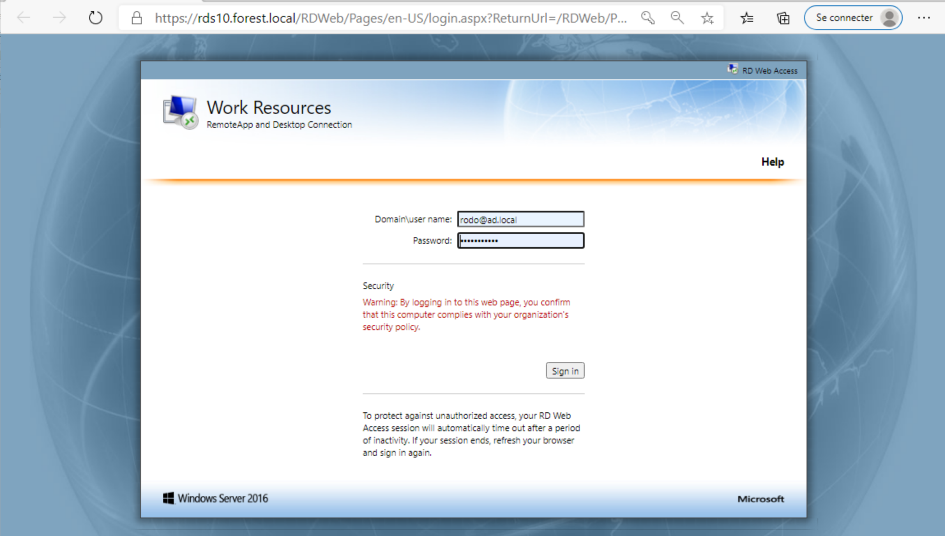

Open Edge browser and browse on url https://rds10.forest.local/rdweb portal

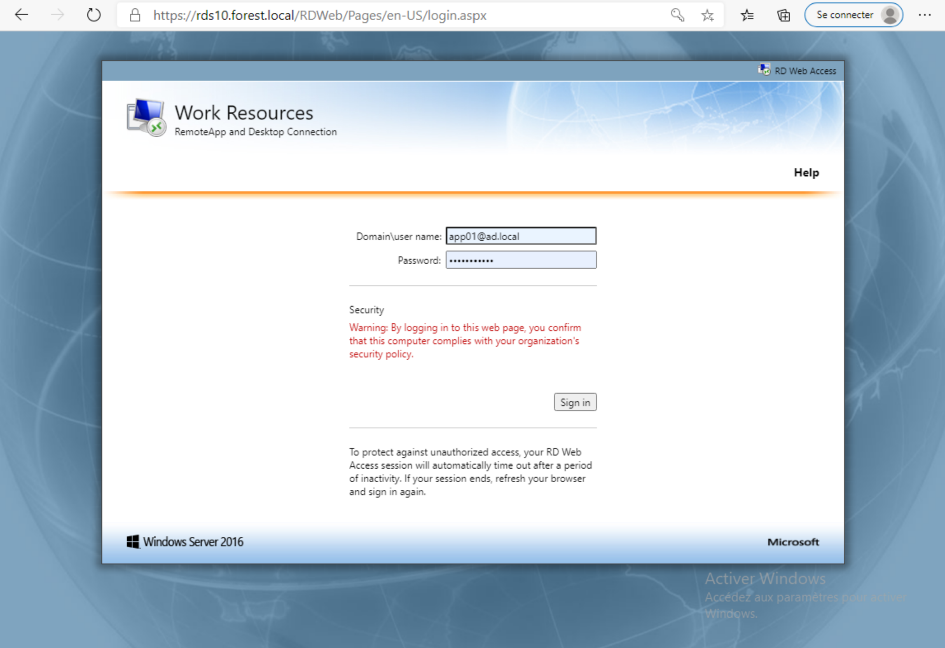

Open session with user account APP01

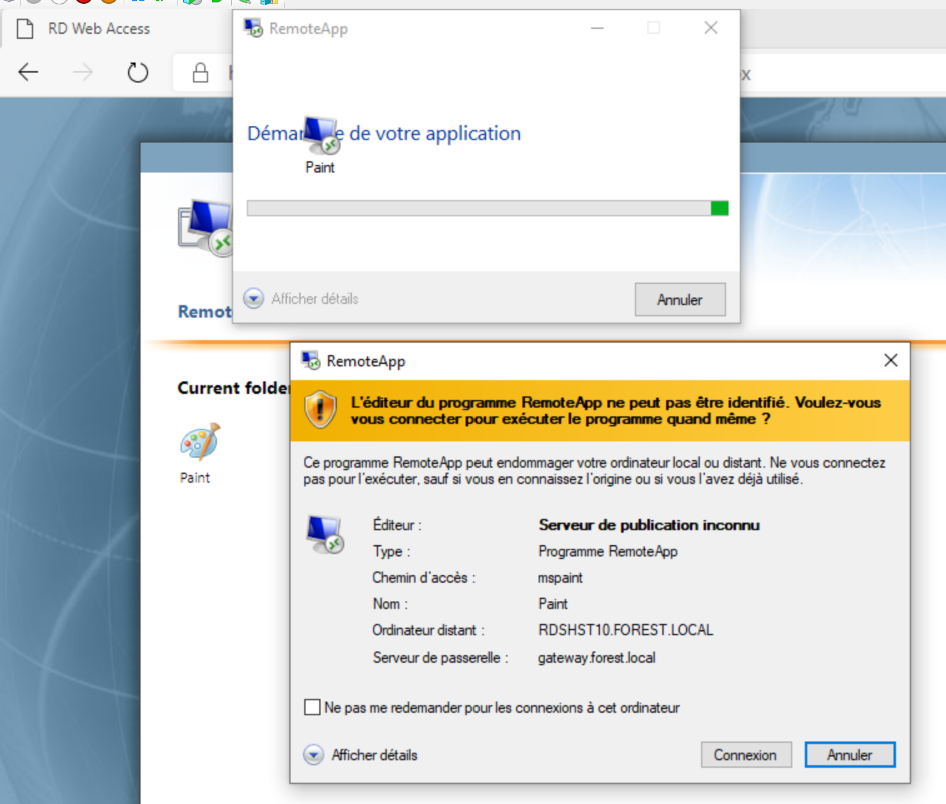

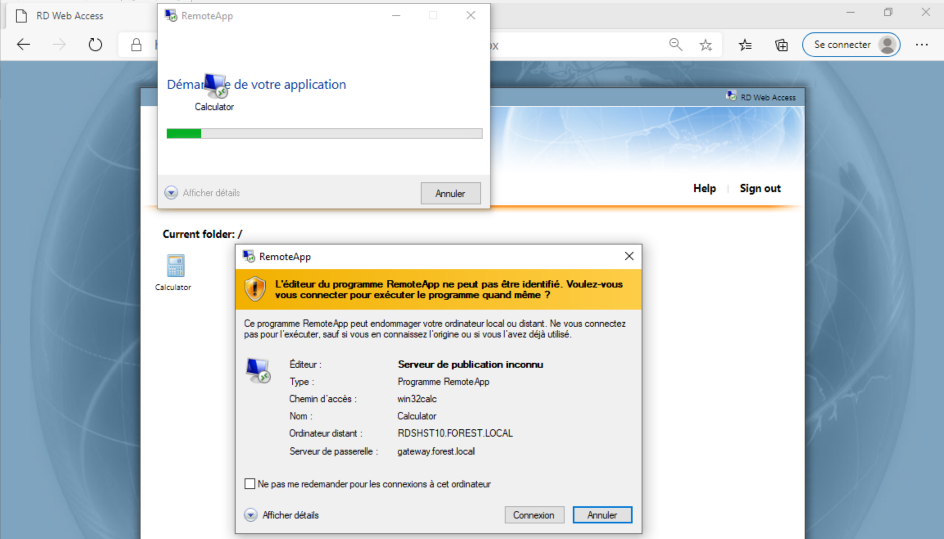

Open Paint applicationClick on « Connexion »

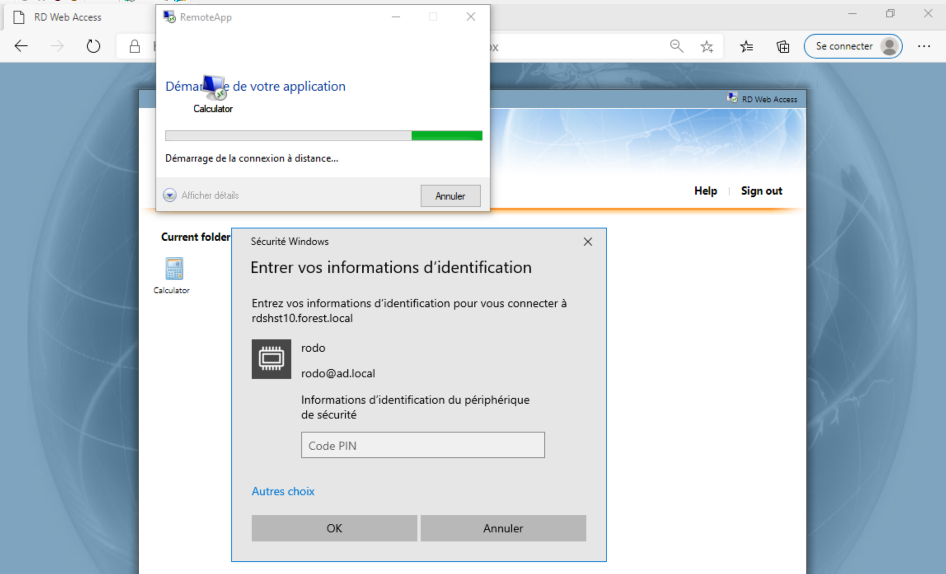

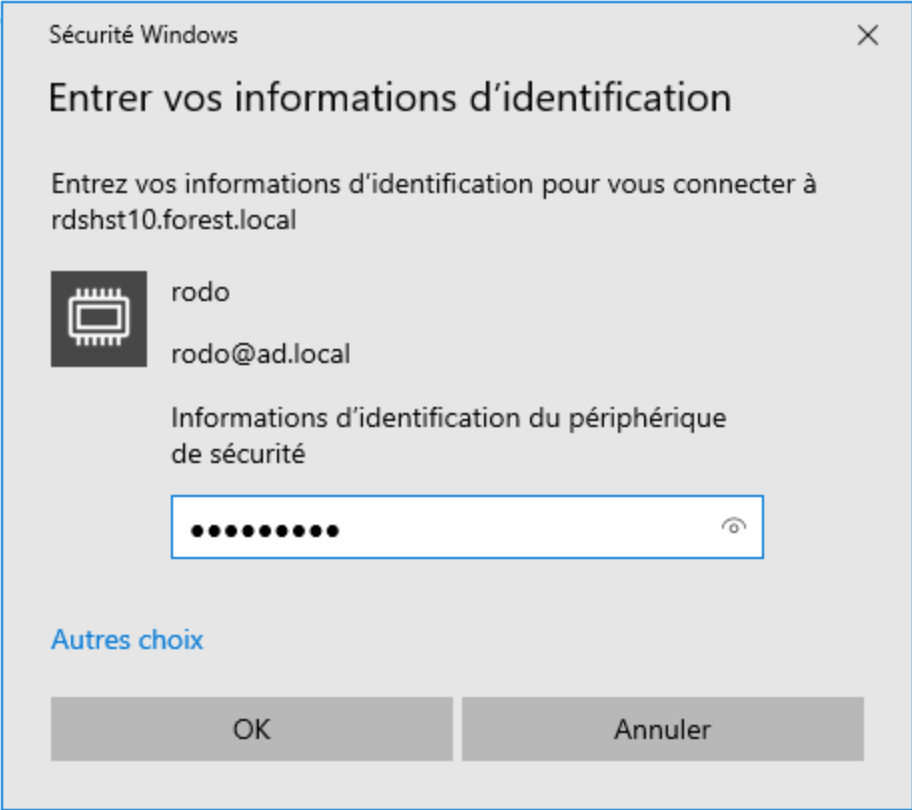

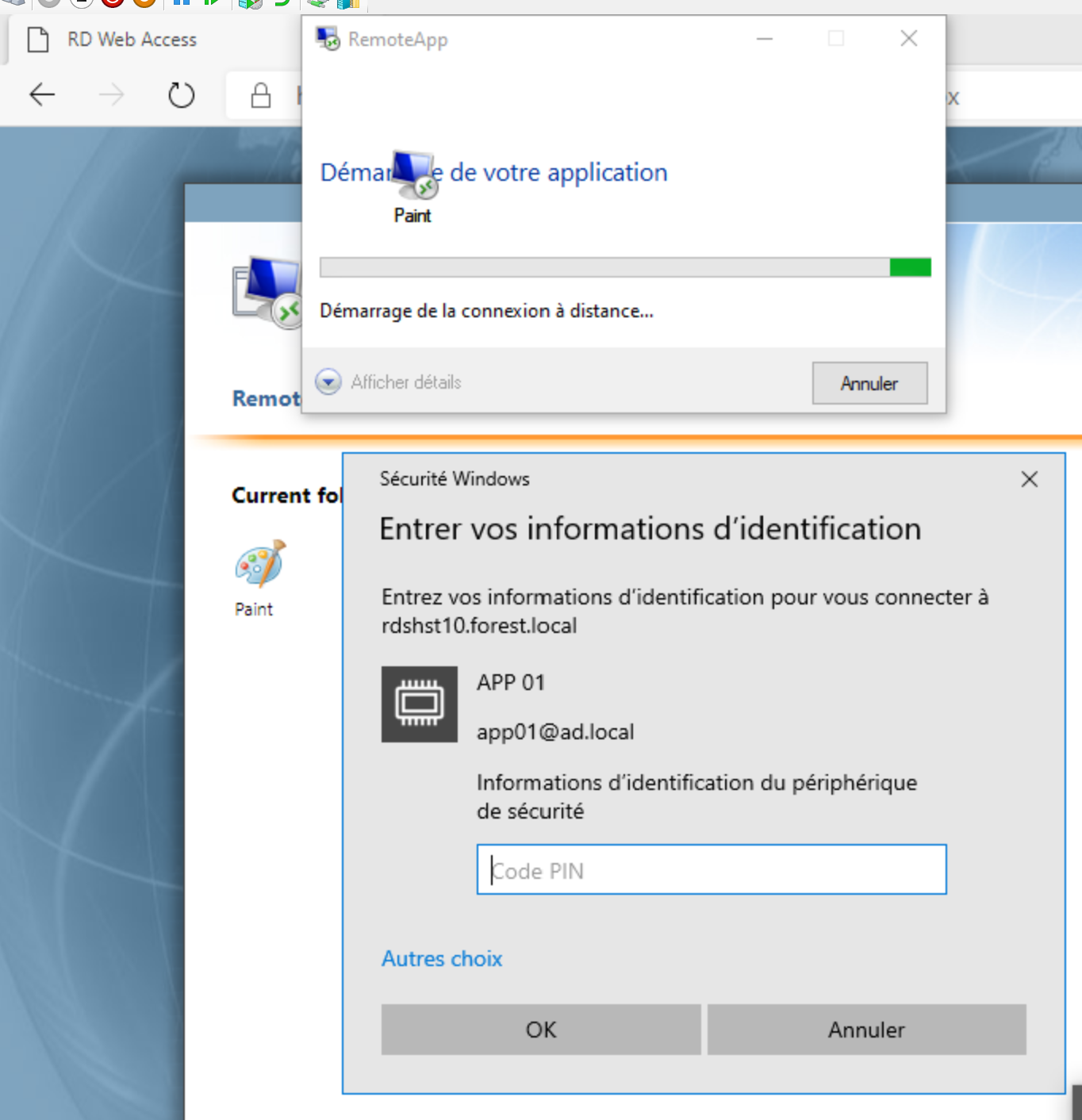

Enter smartcard code pin
Click on OK

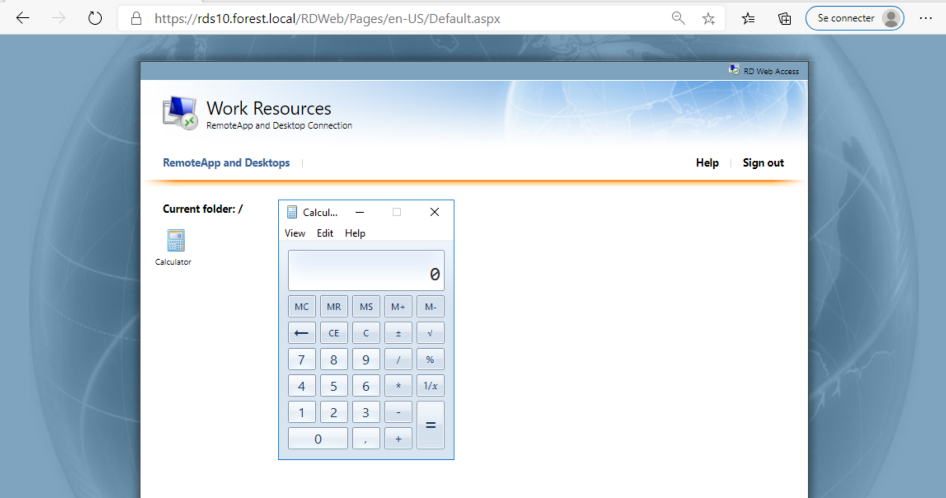

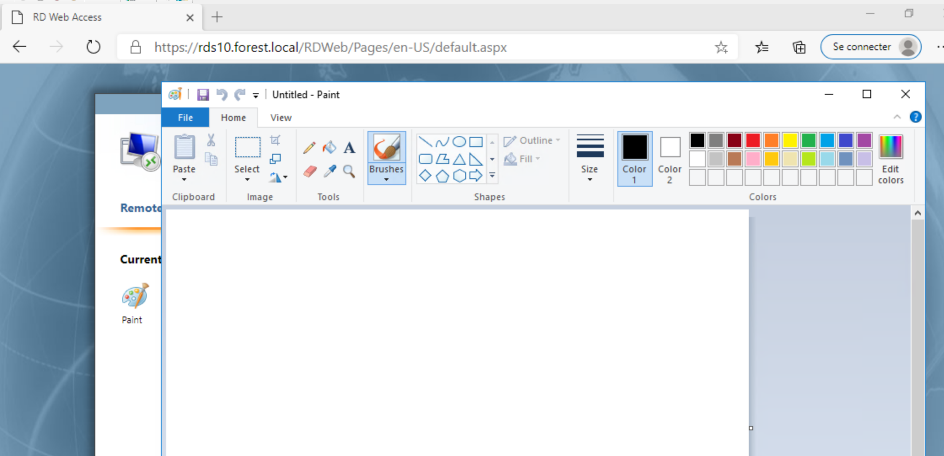

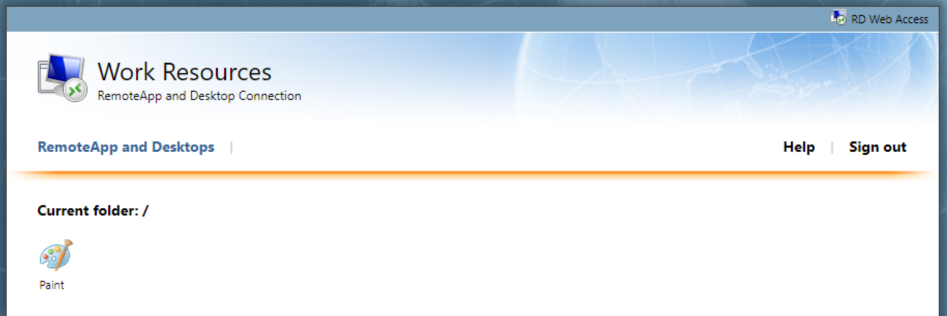

Application is open. Access is valid.

Test with Rodo Account for Calculator application

Open session on workstation Win10 with account user RODO
Open Edge browser and browse on url https://rds10.forest.local/rdweb portal
Open session with user account RODO
Open Paint application
Click on « Connexion »
Enter smartcard code pin
Click on OK
Application is open. Access is valid.
