Cloudify my lab with Windows Azure 13 Comments

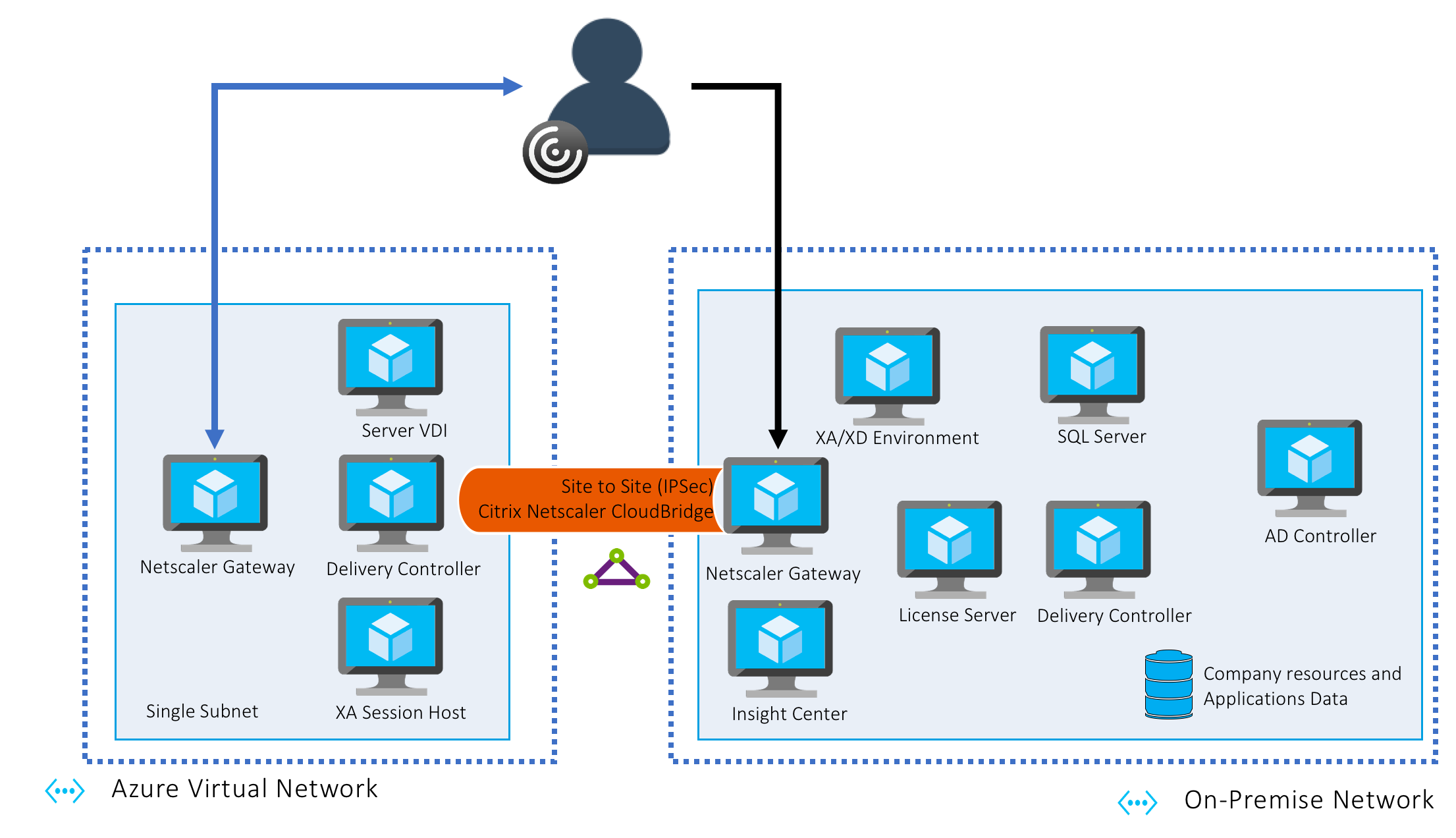

As I got an unlimited access to Windows Azure I wanted to check out how I could extend my lab into it and use it to store VMs workload (at first). Here what you need : Citrix NetScaler VPX (tested with NS10.1: Build 122.17.nc & NS10.1: Build 123.9.nc) Windows Azure Access Homelab (running on vSphere 5.5) Of course, you need licence for everything... Considerations : Before configuring a CloudBridge tunnel between a CloudBridge appliance in datacenter and  Microsoft Azure, consider the following points: The CloudBridge appliance must have a public facing IPv4 address (type SNIP) to use as a tunnel end-point address for the CloudBridge tunnel. Also, the CloudBridge appliance should not be behind a NAT device. (or you'll have to setup a route for your LAN computers, I'm explaining how to at the end of this blog) Azure supports the following IPSec settings for a CloudBridge tunnel. Therefore, you must specify the same IPSec settings while configuring the CloudBridge appliance for the CloudBridge tunnel. IKE version = v1 Encryption algorithm = AES Hash algorithm = HMAC SHA1  You must configure the firewall in the datacenter edge to allow the following. Any UDP packets for port 500 Any UDP packets for port 4500 Any ESP (IP protocol number 50) packets IKE re-keying, which is renegotiation of new cryptographic keys between the CloudBridge tunnel end points to establish new SAs, is not supported. When the Security Associations  (SAs) expire, the tunnel goes into the DOWN state. Therefore, you must set a very large value for the lifetimes of SAs. You must configure Microsoft Azure before specifying the tunnel configuration on the CloudBridge appliance, because the public IP address of the Azure end (gateway) of the tunnel, and the PSK, are automatically generated when you set up the tunnel configuration in Azure. You need this information for specifying the tunnel configuration on the CloudBridge appliance. First thing first, you need to use your Windows Azure account and follow the next step to begin to configure the IPSec tunnel by creating a local network In the left pane, click NETWORKS. In the lower left-hand corner of the screen, click + NEW. In the NEW navigation pane, click NETWORK, then click VIRTUAL NETWORK, and then click ADD LOCAL NETWORK. In the ADD A LOCAL NETWORK wizard, in the specify your local network details screen, set the following parameters: NAME  VPN DEVICE IP ADDRESS In the lower right corner of the screen,…

Part 1/3 Synergy Barcelona 2011 – Personal Cloud 1/3 Part 2/3 Synergy Barcelona 2011 – Private Cloud 2/3 Part 3/3 Synergy Barcelona 2011 – Public Cloud 3/3 Public Cloud The last cloud of 3 (Personal Cloud, Private Cloud and Public Cloud) has been announced to be used in a very easy way, the same way as the creation of a GMail or a Hotmail email account. The way to make this easy connection available is Citrix CloudBridge, this product allow you to connect your datacenter to any cloud with full transparency, security and performance. Citrix CloudBridge will run on network layer 2 and 3 to provide fast and secure IP transaction. The beta version will arrive soon, no more information for now. And then another new product (maybe more like a new NetScaler feature) Citrix NetScaler CloudConnectors will secure the connection all the way down to the client devices has been announced but no release date yet. About what we need to build a cloud, Mark Templeton underline we will soon need to all being ready to build, connect Cloud Infrastructures and Cloud Providers. Most of the enterprise are doing server virtualization ++ built for traditional enterprise apps & client-server compute including a traditional management, then enterprises will need to move on cloud platforms designed around big data, massive scale & next-gen cloud apps with an autonomic management and an open, value added stack. This is where Citrix CloudPortal will enter the game, a layer on to of CloudStack. Citrix vision for the future is 3 clouds, Personal Cloud to empower people, Private Cloud to aggregate and deliver apps and data, Public Cloud to build and connect infrastructures. The 3 PCs. Citrix clearly claims to be the number one partner you need to think when you want to cloudify you network, application, data and devices. And want to lead the new IT to impact the business needs. This is it, I had to live my Synergy remotely from Paris, and this are all the information I could get from Synergy Live and Twitter. Next step will be to digest, analyze and put everything together. I think we have enough new material to play until next Synergy. Part 1/3 Synergy Barcelona 2011 – Personal Cloud 1/3 Part 2/3 Synergy Barcelona 2011 – Private Cloud 2/3 Part 3/3 Synergy Barcelona 2011 – Public Cloud 3/3
